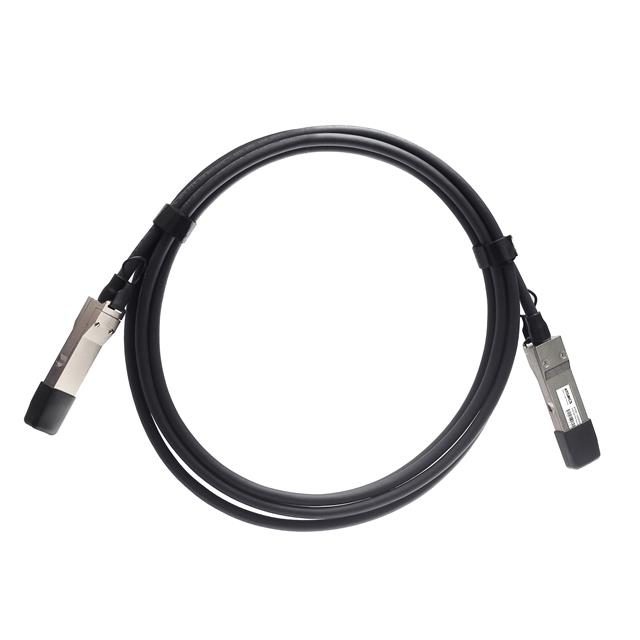

QSFP-100G-CU50CM-C

Active

ATGBICS

COMPATIBLE DAC 100G 0.5M

Search across all available documentation for this part.

Active

ATGBICS

COMPATIBLE DAC 100G 0.5M

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QSFP-100G-CU50CM-C	QSFP-100G Series

Applications	-	General Purpose, Networking
Cable Connectors	QSFP28 to QSFP28	QSFP28 to QSFP28
Cable Type	Round	Round
Color	Black	Aqua, Orange, Black
Connector Type	Plug to Plug	MPO-12, LC Duplex, Plug to Plug
Data Rate	-	100 - 112 Gbps
Fastening Type	Push-Pull	Push-Pull
Features	Passive	Active, Passive
Frequency - Max [Max]	100 Gbps	100 Gbps
Gender	Male to Male	Male to Male
Length	-	20 - 30 m
Length	-	65.62 - 98.43 ft
Length [x]	1.64 ft	1.64 - 49.21 ft
Length [x]	500 mm	1 - 500 m
Mounting Type	-	Pluggable, QSFP28
Number of Positions	38	38
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Unshielded	Unshielded
Usage	Data Center Server Rack, Ethernet, Network	Network, Data Center Server Rack, Ethernet
Voltage - Supply	-	3.3 V
Wavelength	-	850 - 1310 nm
Wire Gauge	30 AWG	26 - 30 AWG

COMPATIBLE QSFP28 100G

Part	Voltage - Supply	Applications	Mounting Type	Connector Type	Data Rate	Wavelength	Fastening Type	Cable Connectors	Usage	Length [x]	Length [x]	Features	Shielding	Cable Type	Gender	Color	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
ATGBICS QSFP-100GBASE-SR4-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	MPO-12	100 Gbps	850 nm
ATGBICS QSFP-100G-ER4-AR-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-ER4-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-AOC3M-C				Plug to Plug			Push-Pull	QSFP28 to QSFP28	Network	9.84 ft	3 m	Active	Unshielded	Round	Male to Male	Aqua
ATGBICS QSFP-100G-LR4-T2-JNP-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-CWDM4-S-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-LR4-T2-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-LR4-AR-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm
ATGBICS QSFP-100G-AOC20M-C				Plug to Plug			Push-Pull	QSFP28 to QSFP28	Data Center Server Rack, Ethernet, Network			Active	Unshielded	Round	Male to Male	Aqua, Orange	70 °C	0 °C	20 m	65.62 ft
ATGBICS QSFP-100G-ECWDM4-AR-C	3.3 V	General Purpose, Networking	Pluggable, QSFP28	LC Duplex	100 Gbps	1310 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

38 Position QSFP28 to QSFP28 Plug to Plug 1.64' (500.00mm) Black Unshielded
