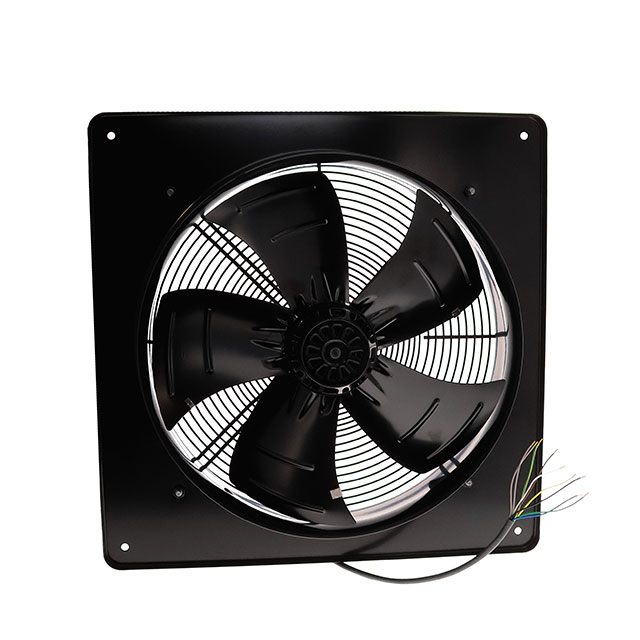

W4D400-DP12-40

Active

ebm-papst Inc.

FAN AXIAL

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	W4D400-DP12-40

Air Flow	42.8 mł/min
Air Flow	1528.5 CFM
Approval Agency	CSA, CE, UL, CCC
Bearing Type	Ball
Current Rating (Amps)	800 mA
Fan Type	Tubeaxial, 3 Phase
Features	Dual Voltage, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Material - Frame	Steel
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	225 W
RPM	1640 RPM
Size / Dimension [x]	540 mm
Size / Dimension [z]	540 mm
Static Pressure	0.502 in H2O
Static Pressure	125 Pa
Termination	9 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC
Width [y]	152 mm

Part	Width [y]	Features	Approval Agency	RPM	Ingress Protection	Current Rating (Amps)	Static Pressure	Static Pressure	Fan Type	Termination	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Air Flow	Air Flow	Voltage - Rated	Material - Blade	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
ebm-papst Inc. W4D400-DP12-40	152 mm	Dual Voltage Thermal Overload Protector (TOP)	CCC CE CSA UL	1640 RPM	IP44	800 mA	0.502 in H2O	125 Pa	Tubeaxial 3 Phase	9 Wire Leads with Splice Terminals	225 W	540 mm	540 mm	Ball	42.8 mł/min	1528.5 CFM	230 VAC	Steel	Steel	60 °C	60 °C	-40 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial, 3 Phase 230VAC Square - 540mm L x 540mm H Ball 1528.5 CFM (42.80m³/min) 9 Wire Leads with Splice Terminals
