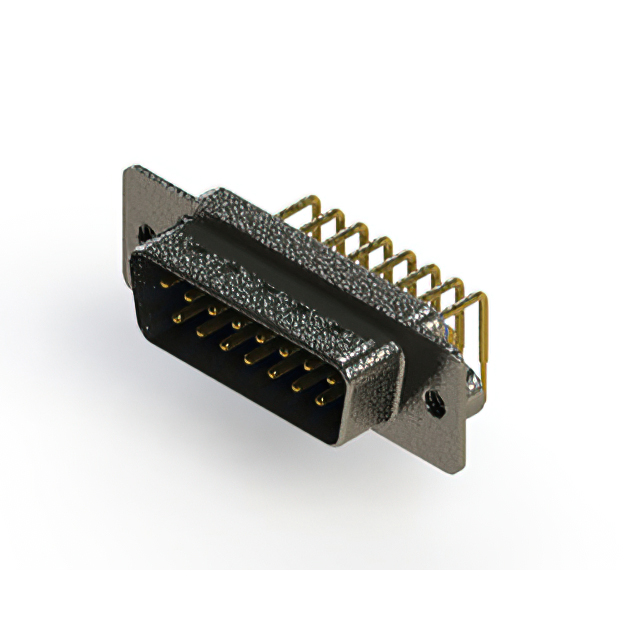

629-M15-340-LT2

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-M15-340-LT2

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-M15-340-LT2

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder

629-M15 Series

Part	Mounting Type	Connector Type	Contact Finish	Current Rating (Amps)	Material Flammability Rating	Features	Number of Rows	Termination	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Shell Size, Connector Layout	Backset Spacing	Backset Spacing	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Style	Contact Type	Color	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 629-M15-640-WT6	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Mounting Brackets Shielded	2	Solder	4-40 Board Side	0.76 Ám	30 Áin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black
EDAC Inc. 629-M15-240-LT4	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Mounting Brackets Shielded	2	Solder	4-40			Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black	Flash
EDAC Inc. 629-M15-240-LT6	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Mounting Brackets Shielded	2	Solder	4-40 Board Side			Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black	Flash
EDAC Inc. 629-M15-340-LN2	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Shielded	2	Solder	Housing/Shell (4-40)	0.38 µm	15 µin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black		Nickel Plated Steel
EDAC Inc. 629-M15-640-WN3	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Mounting Brackets Shielded	2	Solder	Housing/Shell (4-40)	0.76 Ám	30 Áin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black		Nickel Plated Steel
EDAC Inc. 629-M15-640-GN6	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Mounting Brackets Shielded	2	Solder	4-40 Board Side	0.76 Ám	30 Áin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black		Nickel Plated Steel
EDAC Inc. 629-M15-340-LT2	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Shielded	2	Solder	Housing/Shell (4-40)	0.38 µm	15 µin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black
EDAC Inc. 629-M15-640-BT4	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Mounting Brackets Shielded	2	Solder	4-40	0.76 Ám	30 Áin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black
EDAC Inc. 629-M15-640-GT1	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Shielded	2	Solder	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black
EDAC Inc. 629-M15-340-BT1	Through Hole Right Angle	Male Pins Plug	Gold	5 A	UL94 V-0	Grounding Indents Shielded	2	Solder	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Copper Alloy	2	9.4 mm	0.37 in	Polyamide (PA6T) Nylon 6T	-55 °C	125 °C	15	Combo D-Sub	Signal	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 6.50
Newark	Each	250	$ 7.32
		500	$ 7.05

Description

General part information

629-M15 Series

15 Position D-Sub, Combo Plug, Male Pins Connector
