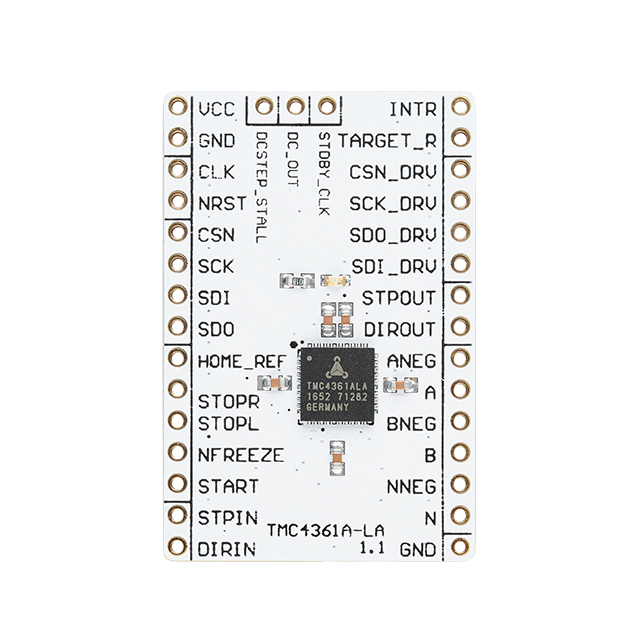

TMC4361A-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD WITH TMC4361A
Deep-Dive with AI
Search across all available documentation for this part.
TMC4361A-BOB
ActiveAnalog Devices Inc./Maxim Integrated
BREAKOUTBOARD WITH TMC4361A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC4361A-BOB | TMC4361 Series |
|---|---|---|
| Applications | - | General Purpose |
| Contents | - | Board(s) |
| Function | - | Controller - Commutation, Direction Management |
| Interface | - | Step/Direction, SPI |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 °C |
| Output Configuration | - | Step/Direction, SPI |
| Package / Case | - | 40-VFQFN Exposed Pad |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 40-QFN (6x6) |
| Technology | - | CMOS |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC4361A | TMC4361A |
| Voltage - Supply | - | 3.3 - 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.20 | |
TMC4361 Series
IC MOTOR DRIVER 3.3V/5V 40QFN
| Part | Supplier Device Package | Interface | Applications | Function | Operating Temperature [Min] | Operating Temperature [Max] | Output Configuration | Technology | Package / Case | Voltage - Supply | Mounting Type | Utilized IC / Part | Type | Contents | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC4361-LA-T | 40-QFN (6x6) | SPI, Step/Direction | General Purpose | Controller - Commutation, Direction Management | -40 °C | 125 °C | SPI, Step/Direction | CMOS | 40-VFQFN Exposed Pad | 3.3 V, 5 V | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated TMC4361A-LA | 40-QFN (6x6) | SPI, Step/Direction | General Purpose | Controller - Commutation, Direction Management | -40 °C | 125 °C | SPI, Step/Direction | CMOS | 40-VFQFN Exposed Pad | 3.3 V, 5 V | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated TMC4361A-EVAL | TMC4361A | Power Management | Board(s) | Board(s) | |||||||||||
Analog Devices Inc./Maxim Integrated TMC4361A-LA-T | 40-QFN (6x6) | SPI, Step/Direction | General Purpose | Controller - Commutation, Direction Management | -40 °C | 125 °C | SPI, Step/Direction | CMOS | 40-VFQFN Exposed Pad | 3.3 V, 5 V | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated TMC4361A-BOB | TMC4361A | Power Management | Board(s) |
Description
General part information
TMC4361 Series
TMC4361A Motor Controller/Driver, Stepper Power Management Evaluation Board
Documents
Technical documentation and resources
No documents available
