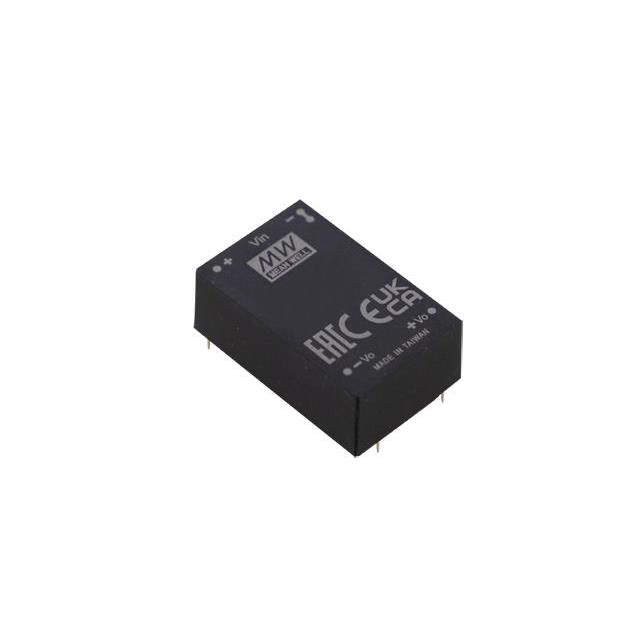

MDS06F-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 6W
MDS06F-12
ActiveMEAN WELL USA Inc.
DC DC CONVERTER 12V 6W
Description
General part information
MDS06F-12
Isolated Module DC DC Converter 1 Output 12V 500mA 9V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MDS06F-12 |
|---|---|
| Applications | Medical |
| Approval Agency | UKCA, CE, EAC |
| Current - Output (Max) | 500 mA |
| Efficiency | 81 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 24-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension Height | 0.48 in |
| Size / Dimension Length | 1.25 in |
| Size / Dimension Width | 0.8 in |
| Standard Number | 60601-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 6 kV |
| Voltage - Output 1 | 12 V |
