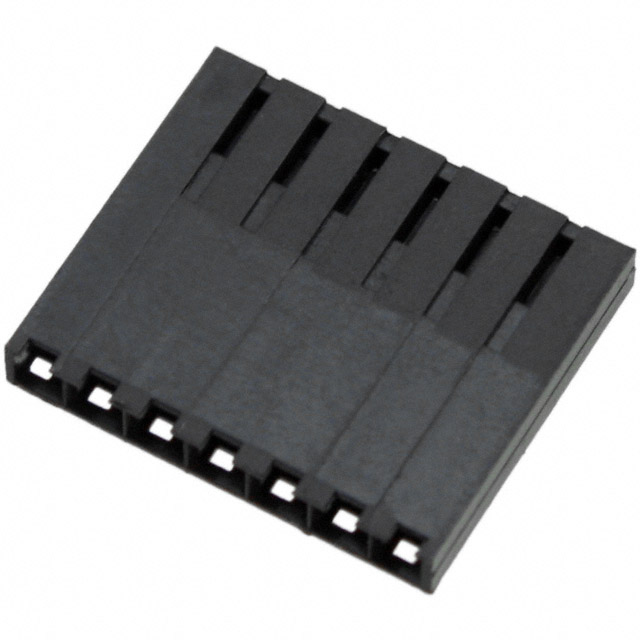

Specification	0050579207

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in

005057 Series

...

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Material	Color	Number of Rows	Mounting Type	Contact Termination	Connector Type	Contact Type	Features	Pitch	Number of Positions	Fastening Type
Molex 0050579221	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket	Polarizing Key	0.1 in	21
Molex 0050579413	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	13	Latch Lock
Molex 0050579216	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	16
Molex 0050579008	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	8
Molex 0050578910	Contacts Not Included				Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	10	Latch Lock
Molex 0050578905	Contacts Not Included				Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	5	Latch Lock
Molex 0050579210	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	10
Molex 0050579203	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket	Polarizing Key	0.1 in	3
Molex 0050579322	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	22
Molex 0050579324	Contacts Not Included	-40 °C	105 °C	Glass Filled Polyester	Black	1	Free Hanging (In-Line)	Crimp	Receptacle	Female Socket		0.1 in	24 pos
