0604BSH

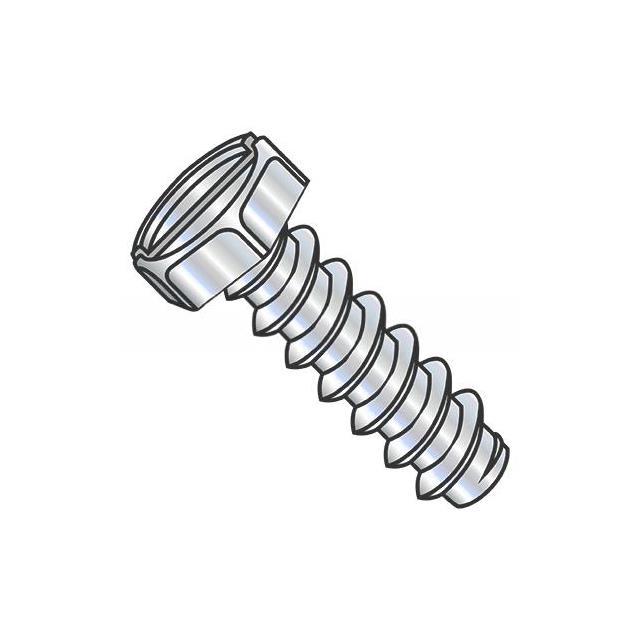

#6-20 Indented Hex Head Self-Tapping Screw Slotted Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0604BSH |
|---|---|
| Drive Type | Slotted |
| Features | Standard |
| Head Diameter | 0.247 in |
| Head Height | 0.087 in |
| Length - Below Head | 0.25 in |
| Length - Overall | 0.337 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Indented Hex Head |
| Thread Size (Max) | 20 mm |
| Thread Size (Min) | 6 mm |
| Type | Self-Tapping Screw |
