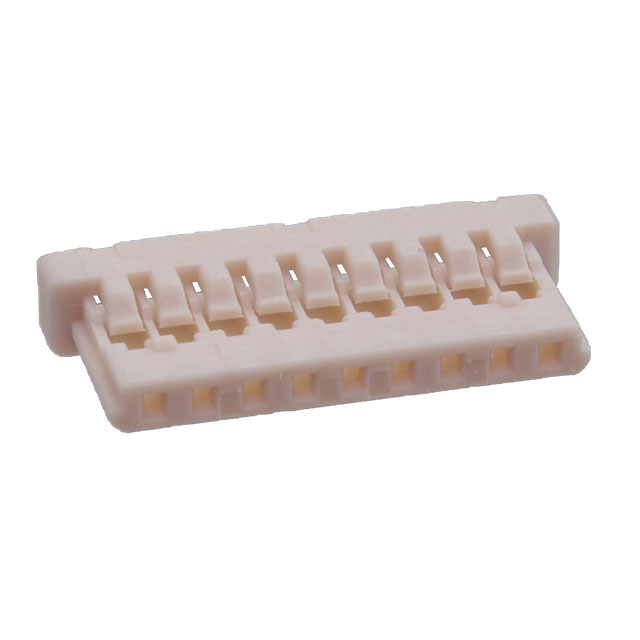

125CH-D-09

Active

Adam Tech

CONN RCPT HSG 9POS 1.25MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 9POS 1.25MM

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT HSG 4POS 1.25MM

Part	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Mounting Type	Insulation Material	Color	Contact Type	Number of Positions	Note	Contact Termination	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Adam Tech 125CH-D-04	0.049 in	1.25 mm	1	Receptacle	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Beige	Female Socket	4	Contacts Not Included	Crimp	Friction Lock	-25 °C	85 °C
Adam Tech 125CH-D-07	0.049 in	1.25 mm	1	Receptacle	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Beige	Female Socket	7	Contacts Not Included	Crimp	Friction Lock	-25 °C	85 °C
Adam Tech 125CH-D-09	0.049 in	1.25 mm	1	Receptacle	Free Hanging (In-Line)	Polyamide (PA66), Nylon 6/6	Beige	Female Socket	9	Contacts Not Included	Crimp	Friction Lock	-25 °C	85 °C
