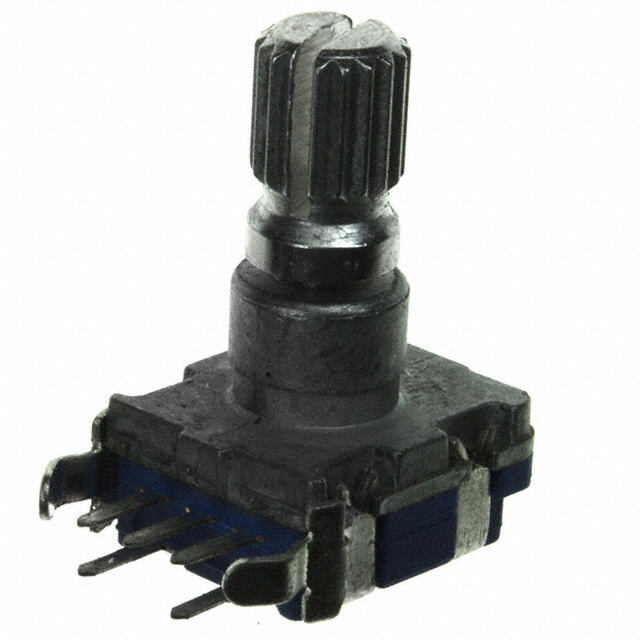

ACZ11BR4E-15KQA1-20C
ActiveCUI Devices
ROTARY ENCODER INCREMENT 20PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACZ11BR4E-15KQA1-20C
ActiveCUI Devices
ROTARY ENCODER INCREMENT 20PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACZ11BR4E-15KQA1-20C |
|---|---|
| Actuator Type | Knurled End |
| Actuator Type [diameter] | 6 mm |
| Built in Switch | True |
| Detent | True |
| Encoder Type | Incremental |
| Orientation | Right Angle |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 20 |
| Rotational Life (Cycles Min) [Min] | 30K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1000 | $ 1.61 | |
Description
General part information
ACZ11BR4E-15KQA1-20C
Rotary Encoder Incremental 20 Quadrature (Incremental) Right Angle
Documents
Technical documentation and resources
