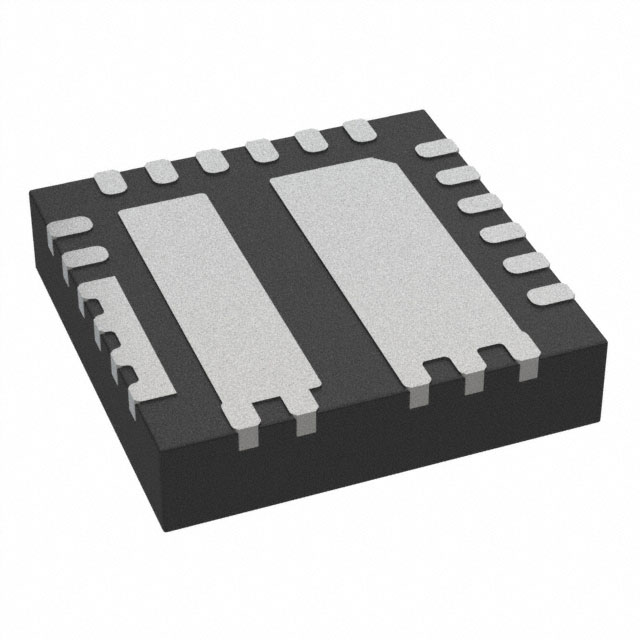

AOZ9511QV
ActiveAlpha & Omega Semiconductor Inc.
30V/7.5MOHM, HALF BRIDGE POWER S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AOZ9511QV
ActiveAlpha & Omega Semiconductor Inc.
30V/7.5MOHM, HALF BRIDGE POWER S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ9511QV |
|---|---|
| Applications | DC Motor Driver, Brushless (BLDC) |
| Current - Output | 20 A |
| Function | Driver |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 23-PowerTFQFN |
| Supplier Device Package | 23-QFNB (4x4) |
| Technology | NMOS |
| Voltage - Load | 5 VDC |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.56 | |
| 10 | $ 1.39 | |||
| 25 | $ 1.32 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.56 | ||
| 10 | $ 1.39 | |||
| 25 | $ 1.32 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.02 | |||
| 500 | $ 0.90 | |||
| 1000 | $ 0.71 | |||
| Tape & Reel (TR) | 3000 | $ 0.67 | ||
| 6000 | $ 0.63 | |||
| 9000 | $ 0.61 | |||
| 15000 | $ 0.59 | |||
Description
General part information
AOZ9511QV
Motor Driver NMOS 23-QFNB (4x4)
