ERA.00.250.CTL

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERA.00.250.CTL

Active

LEMO

CONN NIMCAMAC RCPT STR 50 OHM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ERA.00.250.CTL	ERA.00.250 Series

Body Finish	Chrome	Chrome, Nickel, Gold
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver, Gold
Impedance	50 Ohms	50 Ohms

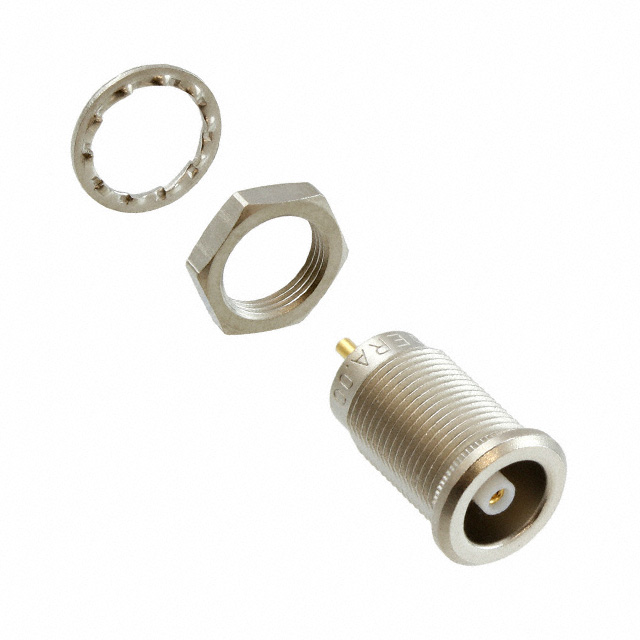

Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

ERA.00.250 Series

CONN NIMCAMAC RCPT STR 50 OHM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Ingress Protection	Housing Color	Shield Termination	Impedance	Connector Style	Includes	Mounting Feature	Body Material	Body Finish	Fastening Type	Contact Termination	Mating Cycles	Center Contact Material	Center Contact Plating	Dielectric Material	Connector Type	Voltage Rating
LEMO ERA.00.250.CLL	-55 °C	260 ░C	1	IP50	Silver	Solder	50 Ohms	NIM-CAMAC CD/N 549	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead - Rear Side Nut	Brass	Chrome	Push-Pull	Solder Cup	5000	Bronze	Gold	Polyetheretherketone (PEEK)	Female Socket, Receptacle	700 VDC
LEMO ERA.00.250.NTL	-55 °C	260 ░C	1	IP50	Silver	Solder	50 Ohms	NIM-CAMAC CD/N 549	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead - Rear Side Nut	Brass	Nickel	Push-Pull	Solder Cup	5000	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Female Socket, Receptacle	700 VDC
LEMO ERA.00.250.CTL	-55 °C	260 ░C	1	IP50	Silver	Solder	50 Ohms	NIM-CAMAC CD/N 549	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead - Rear Side Nut	Brass	Chrome	Push-Pull	Solder Cup	5000	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Female Socket, Receptacle	700 VDC
LEMO ERA.00.250.NLL	-55 °C	260 ░C		IP50	Silver	Solder	50 Ohms	NIM-CAMAC CD/N 549	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead - Rear Side Nut	Brass	Nickel	Push-Pull	Solder Cup	5000	Bronze	Gold	Polyetheretherketone (PEEK)	Female Socket, Receptacle	700 VDC
LEMO ERA.00.250.DTL	-55 °C	260 ░C	1	IP50	Gold	Solder	50 Ohms	NIM-CAMAC CD/N 549	1 Connector, 1 Lockwasher, 1 Nut	Bulkhead - Rear Side Nut	Brass	Gold	Push-Pull	Solder Cup	5000	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Female Socket, Receptacle	700 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.00
		10	$ 13.29
		25	$ 12.78
		50	$ 12.27
		100	$ 11.59
		250	$ 10.57
		500	$ 9.89
		1000	$ 9.07

Description

General part information

ERA.00.250 Series

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
