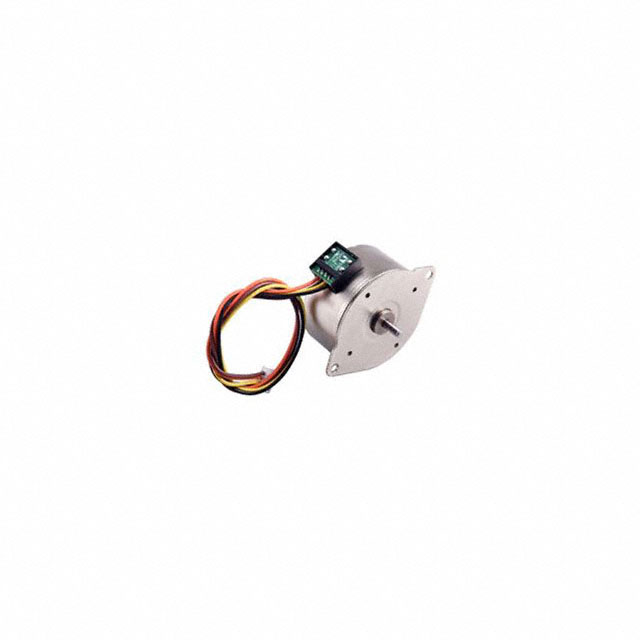

PM42L-075-055

Active

LIN ENGINEERING

PERMANENT MAGNET STEPPER MOTOR

Search across all available documentation for this part.

Active

LIN ENGINEERING

PERMANENT MAGNET STEPPER MOTOR

Technical Specifications

Parameters and characteristics for this part

PERMANENT MAGNET STEPPER MOTOR

Part	Coil Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Rotor Inertia	Size / Dimension [diameter]	Size / Dimension [diameter]	Step Angle	Current Rating (Amps)	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated
LIN ENGINEERING PM42L-075-055	Bipolar	0.394 in	10 mm	49.5 mm	1.949 in	3 mm	0.118 in	13.2 oz-in	93.21 mNm	11.6 gcm²	42 mm	1.65 in	7.5 °	0.55 A	7 Ohms	50 °C	-20 C	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Frame Size 48.0 Step 0.55 A 24VDC
