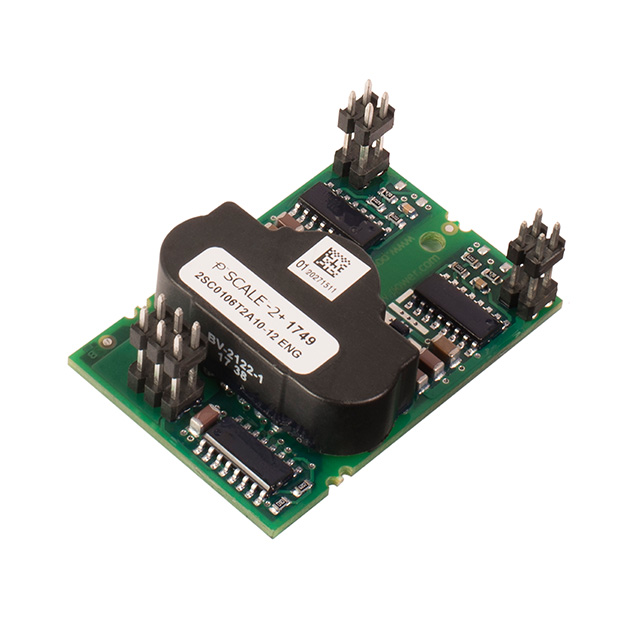

2SC0106T2A1-12

Active

Power Integrations

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HALF-BRIDGE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	2SC0106T2A1-12

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	6 A
Current - Peak Output (Source, Sink) [custom]	6 A
Driven Configuration	Half-Bridge
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	1200 V
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	13 ns
Rise / Fall Time (Typ) [custom]	20 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15.5 V
Voltage - Supply [Min]	14.5 V

Part	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Driven Configuration	Mounting Type	Number of Drivers	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Channel Type	Input Type
Power Integrations 2SC0106T2A1-12	1200 V	14.5 V	15.5 V	IGBT	6 A	6 A	Module	Half-Bridge	Surface Mount	2	105 °C	-40 °C	13 ns	20 ns	Module	Independent
Power Integrations 2SC0106T2A1C-12	1200 V	14.5 V	15.5 V	IGBT	6 A	6 A	Module	Half-Bridge	Chassis Mount	2	105 °C	-40 °C	13 ns	20 ns	Module	Independent	Non-Inverting

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half-Bridge Gate Driver IC Module
