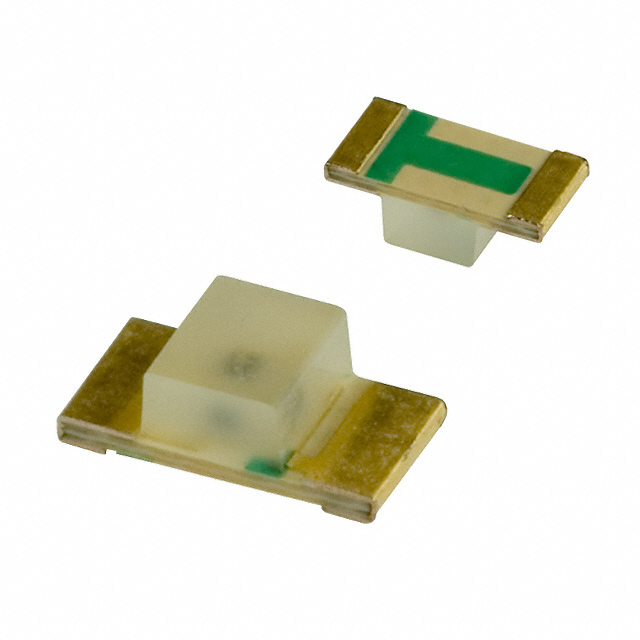

BR1111R-TR

Obsolete

Stanley Electric Co

LED RED DIFF 3216 SMD BOTTOM ENT

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED RED DIFF 3216 SMD BOTTOM ENT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BR1111R-TR	BR1111 Series

Color	Red	Red
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	1.3 mm	0.8 - 1.3 mm
Lens Color	White	White
Lens Size [x]	1.4 mm	1.1 - 1.4 mm
Lens Size [y]	1.6 mm	0.8 - 1.6 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	12.7 mcd	11.7 - 12.7 mcd
Mounting Type	Surface Mount, Bottom Entry	Surface Mount, Surface Mount, Bottom Entry
Package / Case	1206 (3216 Metric)	0603 (1608 Metric), 1206 (3216 Metric)
Size / Dimension [x]	3.2 mm	1.6 - 3.2 mm
Size / Dimension [y]	1.6 mm	0.8 - 1.6 mm
Supplier Device Package	3216 Type	1608, 3216 Type
Viewing Angle	149 °, 151 °	136 - 151 °
Voltage - Forward (Vf) (Typ)	1.7 V	1.7 V
Wavelength - Dominant [custom]	647 nm	647 nm
Wavelength - Peak	660 nm	660 nm

LED RED DIFFUSED 1608 SMD

Part	Configuration	Viewing Angle	Millicandela Rating	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Style	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Supplier Device Package	Wavelength - Dominant [custom]	Mounting Type	Lens Transparency	Lens Size [y]	Lens Size [x]	Lens Color	Current - Test	Color
Stanley Electric Co BR1111C-TR	Standard	136 °, 141 °	11.7 mcd	660 nm	1.7 V	Rectangle with Flat Top	0603 (1608 Metric)	1.6 mm	0.8 mm	0.8 mm	1608	647 nm	Surface Mount	Diffused	0.8 mm	1.1 mm	White	20 mA	Red
Stanley Electric Co BR1111R-TR	Standard	149 °, 151 °	12.7 mcd	660 nm	1.7 V	Rectangle with Flat Top	1206 (3216 Metric)	3.2 mm	1.6 mm	1.3 mm	3216 Type	647 nm	Surface Mount, Bottom Entry	Diffused	1.6 mm	1.4 mm	White	20 mA	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 647nm LED Indication - Discrete 1.7V 1206 (3216 Metric)
