Description
General part information
B39162B2611P810

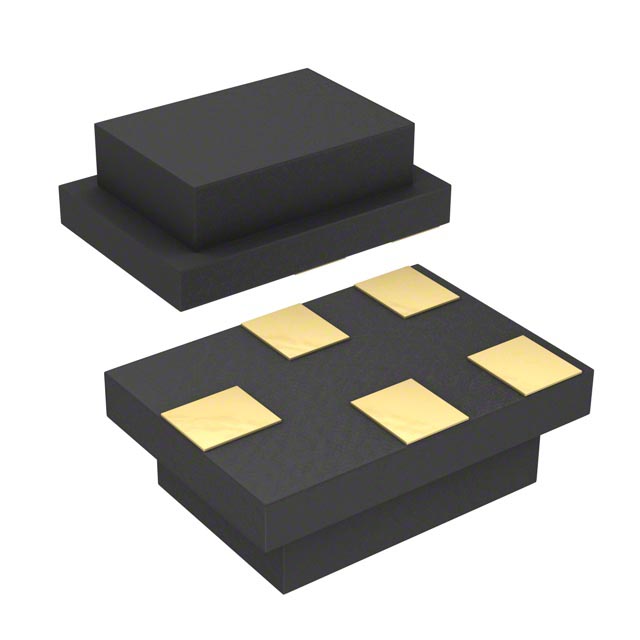

1.58247GHz Frequency GPS RF SAW Filter (Surface Acoustic Wave) 0.9dB 46.8MHz Bandwidth 5-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | B39162B2611P810 |
|---|---|
| Applications | GPS |
| Bandwidth | 46.8 MHz |
| Frequency - Center | 1.58247 GHz |
| Height (Max) | 0.018 in |
| Insertion Loss | 0.9 dB |
| Mounting Type | Surface Mount |
| Package / Case | 5-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.043 in |
| Size / Dimension Width | 0.035 in |
