RTX-104BD3C-S-40.000-TR
ActiveRaltron Electronics
XTAL OSC TCXO 40MHZ CLP SNW
RTX-104BD3C-S-40.000-TR
ActiveRaltron Electronics
XTAL OSC TCXO 40MHZ CLP SNW
Description
General part information
RTX-104BD3C-S-40.000-TR

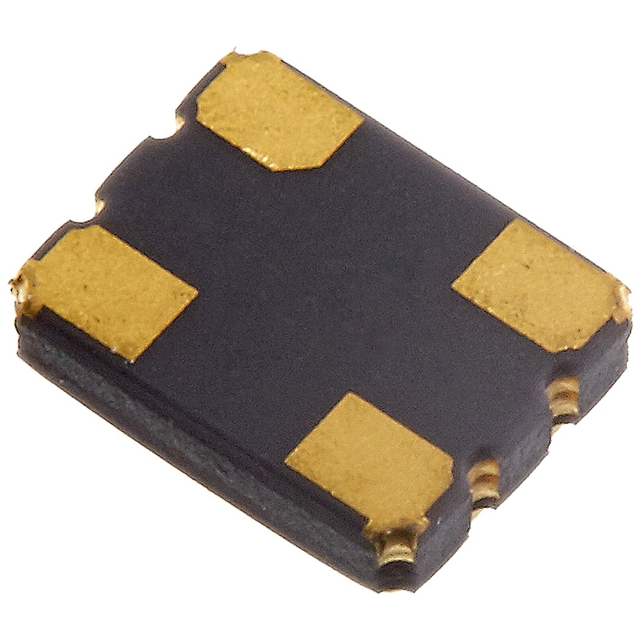

40 MHz TCXO Clipped Sine Wave Oscillator 2.8V ~ 3.3V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | RTX-104BD3C-S-40.000-TR |
|---|---|
| Absolute Pull Range (Maximum) | 1 ppm |
| Absolute Pull Range (Minimum) | -1 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) | 2.5 mA |
| Frequency | 40 MHz |
| Frequency Stability | 1 ppm |
| Height - Seated (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3.3 V |
| Voltage - Supply (Minimum) | 2.8 V |
