8477 060U500

Active

Belden Inc.

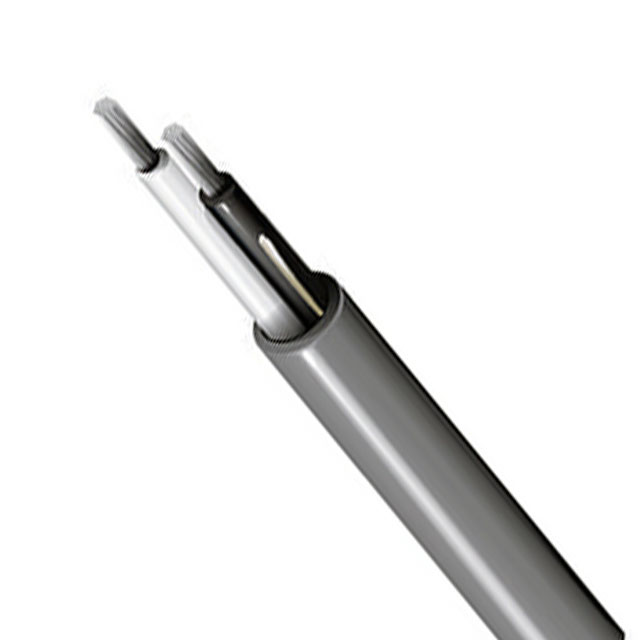

CABLE 2COND 12AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 12AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8477 060U500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	9.8 mm
Jacket (Insulation) Diameter [diameter]	0.386 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2587
Usage	Audio, Instrumentation, Control
Wire Gauge	12 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Cable Type	Conductor Material	Conductor Insulation	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Jacket (Insulation) Material	Length	Length
Belden Inc. 8477 060U500	9.8 mm	0.386 in	Chrome	30 AWG	65	2	Multi-Conductor	Copper Tinned	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	0.889 mm	0.035 in	UL Style 2587	500 '	152.4 m	-20 C	90 °C	12 AWG	Poly-Vinyl Chloride (PVC)
Belden Inc. 8477 0601000	9.8 mm	0.386 in	Chrome	30 AWG	65	2	Multi-Conductor	Copper Tinned	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	0.889 mm	0.035 in	UL Style 2587			-20 C	90 °C	12 AWG	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.42

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 12 AWG 500.0' (152.4m)
