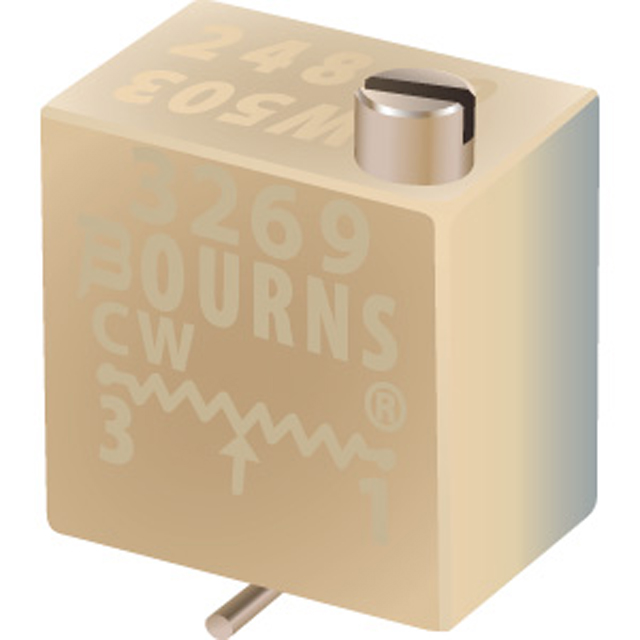

3269W-11-101LF
ActiveBourns Inc.
TRIMMER 100 OHM 0.25W GW SIDE
3269W-11-101LF
ActiveBourns Inc.
TRIMMER 100 OHM 0.25W GW SIDE
Description
General part information
3269W-11-101LF
100 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 12.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | 3269W-11-101LF |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 12 turns |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 100 Ohms |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.17 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | Gull Wing |
| Tolerance | 10 % |
