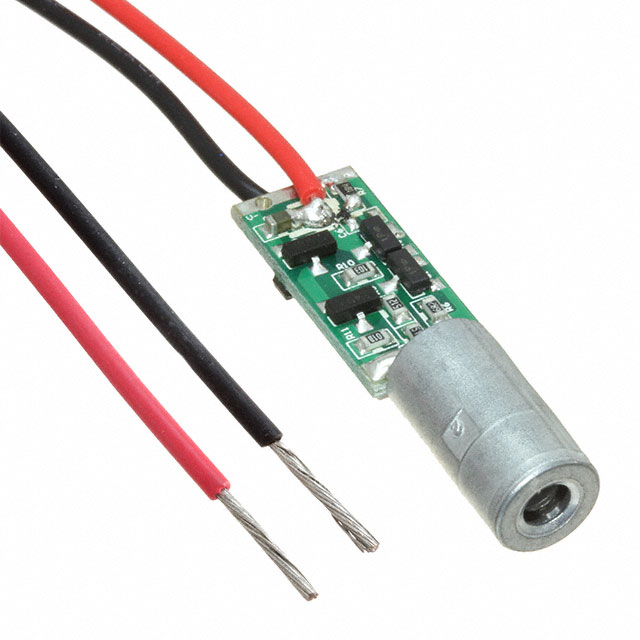

VLM-520-04 LPT

Active

Quarton Inc.

LASER DIODE 520NM 1MW 6.55MM DIA

Search across all available documentation for this part.

Active

Quarton Inc.

LASER DIODE 520NM 1MW 6.55MM DIA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VLM-520-04 LPT	VLM-520 Series

Current Rating (Amps)	80 mA	80 - 120 mA
For Use With/Related Products	-	Measurements
Package / Case	Cylinder	Cylinder, Module
Package / Case [diameter]	6.55 mm	6.5 - 12.5 mm
Power (Watts)	1 mW	0.39 - 5 mW
Voltage - Input [Max]	10 V	6 - 12 V
Voltage - Input [Min]	7 V	3 - 7 V
Wavelength	520 nm	520 nm

LASER DIODE 520NM 1MW 10.5MM DIA

Part	Power (Watts)	Package / Case	Package / Case [diameter]	Voltage - Input [Max]	Voltage - Input [Min]	Wavelength	Current Rating (Amps)
Quarton Inc. VLM-520-02 LPT	1 mW	Cylinder	10.5 mm	10 V	7 V	520 nm	80 mA
Quarton Inc. VLM-520-73 LPT	1 mW	Cylinder	7 mm	6 V	3 V	520 nm
Quarton Inc. VLM-520-02 LPA	4 mW	Cylinder	10.5 mm	10 V	7 V	520 nm	100 mA
Quarton Inc. VLM-520-37 LPT	1 mW	Module		12 V	7 V	520 nm	80 mA
Quarton Inc. VLM-520-29 LPA	5 mW	Cylinder	9 mm	10 V	7 V	520 nm	100 mA
Quarton Inc. VLM-520-37 LPA	5 mW	Module		12 V	7 V	520 nm	120 mA
Quarton Inc. VLM-520-27 LPT	2 mW	Cylinder	12.5 mm	10 V	7 V	520 nm	80 mA
Quarton Inc. VLM-520-29 LPT	1 mW	Cylinder	9 mm	10 V	7 V	520 nm	80 mA
Quarton Inc. VLM-520-53 SPA	4 mW	Cylinder	10.5 mm	7 V	3 V	520 nm	100 mA
Quarton Inc. VLM-520-04 LPT	1 mW	Cylinder	6.55 mm	10 V	7 V	520 nm	80 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.20

General part information

Laser Diode 520nm 1mW 7V ~ 10V 80mA Cylinder (6.55mm Dia)

Technical documentation and resources

No documents available
