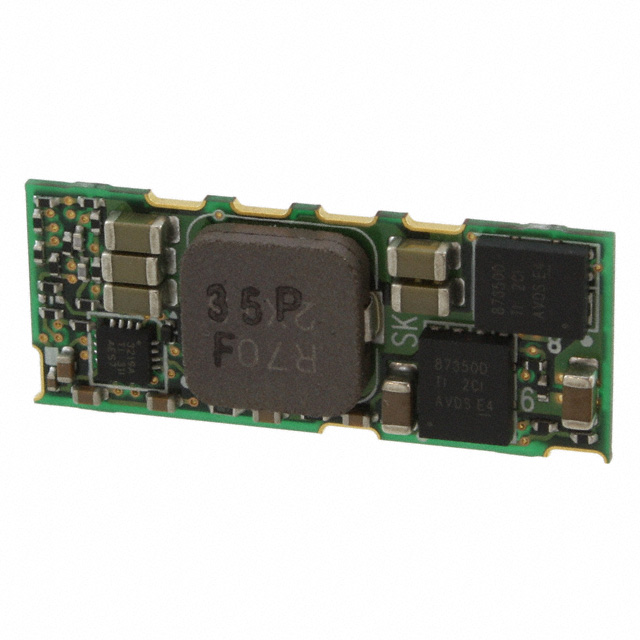

BR206
ActiveSanken Electric USA Inc.
DC DC CONVERTER 0.75-3.63V 73W
BR206
ActiveSanken Electric USA Inc.
DC DC CONVERTER 0.75-3.63V 73W
Description
General part information
BR206
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.63V 20A 4.5V - 7V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | BR206 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 20 A |
| Efficiency | 94.6 % |
| Features | Remote On/Off, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 10-SMD Module |
| Power (Watts) | 73 W |
| Size / Dimension Height | 0.17 in |
| Size / Dimension Length | 1.3 in |
| Size / Dimension Width | 0.53 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 7 V |
| Voltage - Input (Min) | 4.5 V |
| Voltage - Output 1 (Max) | 3.63 V |
| Voltage - Output 1 (Min) | 0.75 V |
