B78108E1153K009
LTBEPCOS - TDK Electronics
FIXED IND 15UH 1.6A 230 MOHM TH
B78108E1153K009
LTBEPCOS - TDK Electronics
FIXED IND 15UH 1.6A 230 MOHM TH
Description
General part information
B78108E1153K009

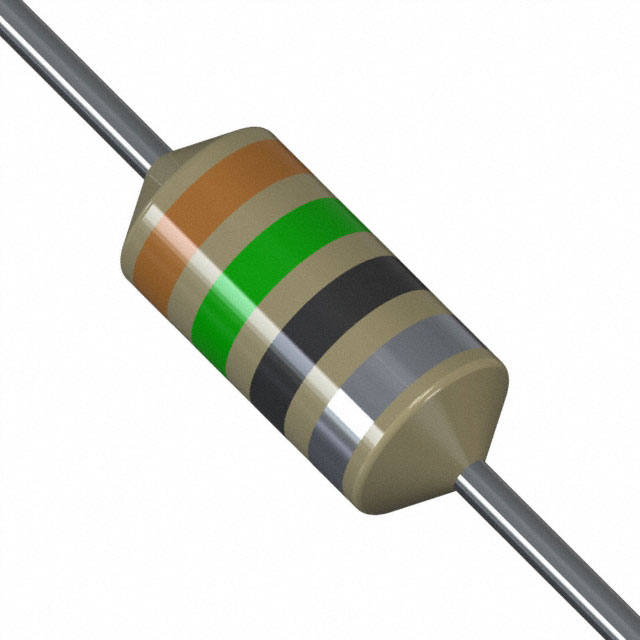

15 µH Unshielded Drum Core, Wirewound Inductor 1.6 A 230mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B78108E1153K009 |
|---|---|
| Current - Saturation (Isat) | 1.45 A |
| Current Rating | 1.6 A |
| DC Resistance (DCR) (Max) | 230 mOhm |
| Frequency - Self Resonant | 15 MHz |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 40 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.157 in |
| Size / Dimension Length | 0.374 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
