PBC13SBAN

Active

Sullins Connector Solutions

CONN HEADER R/A 13POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC13SBAN

Active

Sullins Connector Solutions

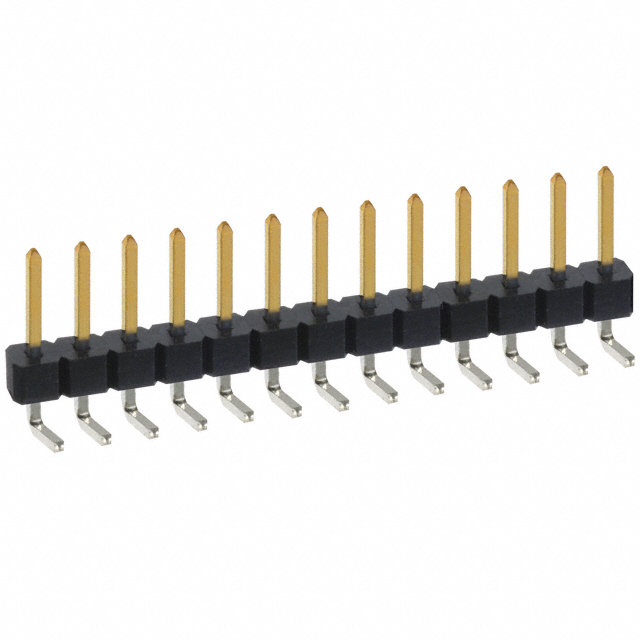

CONN HEADER R/A 13POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC13SBAN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC13 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Material Flammability Rating	Contact Shape	Contact Material	Shrouding	Insulation Color	Fastening Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Number of Rows	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Number of Positions	Termination	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Overall Contact Length
Sullins Connector Solutions PBC13DFAN	10 çin	0.25 çm	0.12 in	3.05 mm	Board to Board Cable	0.318 "	8.08 mm	0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A	0.538 "	13.67 mm	Tin	2	Male Pin	2.54 mm	0.1 in	Gold	26	Solder	All
Sullins Connector Solutions PBC13DGAN	10 çin	0.25 çm			Board to Board Cable	0.318 "	8.08 mm	0.24 in	6.1 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole Right Angle	3 A			Tin	2	Male Pin	2.54 mm	0.1 in	Gold	26	Solder	All	2.54 mm	0.1 in
Sullins Connector Solutions PBC13SFDN	10 çin	0.25 çm	0.42 in	10.67 mm	Board to Board Cable	0.318 "	8.08 mm	0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A	0.838 in	21.29 mm	Tin	1	Male Pin			Gold	13	Solder	All
Sullins Connector Solutions PBC13SACN	10 çin	0.25 çm	0.32 in	8.13 mm	Board to Board Cable	0.23 in		0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A		0.65 in	Tin	1	Male Pin			Gold	13	Solder	All			5.84 mm	16.51 mm
Sullins Connector Solutions PBC13SGBN	10 çin	0.25 çm	0.2 in	5.08 mm	Board to Board Cable	0.318 "	8.08 mm	0.14 in	3.56 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole Right Angle	3 A			Tin	1	Male Pin			Gold	13	Solder	All
Sullins Connector Solutions PBC13DACN	10 çin	0.25 çm	0.32 in	8.13 mm	Board to Board Cable	0.23 in		0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A		0.65 in	Tin	2	Male Pin	2.54 mm	0.1 in	Gold	26	Solder	All			5.84 mm	16.51 mm
Sullins Connector Solutions PBC13DABN	10 çin	0.25 çm			Board to Board Cable	0.23 in		0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A	0.56 in	14.22 mm	Tin	2	Male Pin	2.54 mm	0.1 in	Gold	26	Solder	All	5.84 mm	0.23 in	5.84 mm
Sullins Connector Solutions PBC13DADN	10 çin	0.25 çm	0.42 in	10.67 mm	Board to Board Cable	0.23 in		0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A	0.75 in	19.05 mm	Tin	2	Male Pin	2.54 mm	0.1 in	Gold	26	Solder	All			5.84 mm
Sullins Connector Solutions PBC13SBAN	10 çin	0.25 çm			Board to Board Cable	0.23 in		0.14 in	3.56 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole Right Angle	3 A			Tin	1	Male Pin			Gold	13	Solder	All	2.54 mm	0.1 in	5.84 mm
Sullins Connector Solutions PBC13DFDN	10 çin	0.25 çm	0.42 in	10.67 mm	Board to Board Cable	0.318 "	8.08 mm	0.1 in	2.54 mm	UL94 V-0	Square	Phosphor Bronze	Unshrouded	Black	Push-Pull	Breakaway Header	0.1 in	2.54 mm	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	125 °C	-65 ░C	Through Hole	3 A	0.838 in	21.29 mm	Tin	2	Male Pin	2.54 mm	0.1 in	Gold	26	Solder	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.46
		10	$ 1.11
		100	$ 0.85
		500	$ 0.72
		1000	$ 0.67
		5000	$ 0.61

Description

General part information

PBC13 Series

Connector Header Through Hole, Right Angle 13 position 0.100" (2.54mm)
