1-965261-1
ActiveTE Connectivity AMP Connectors

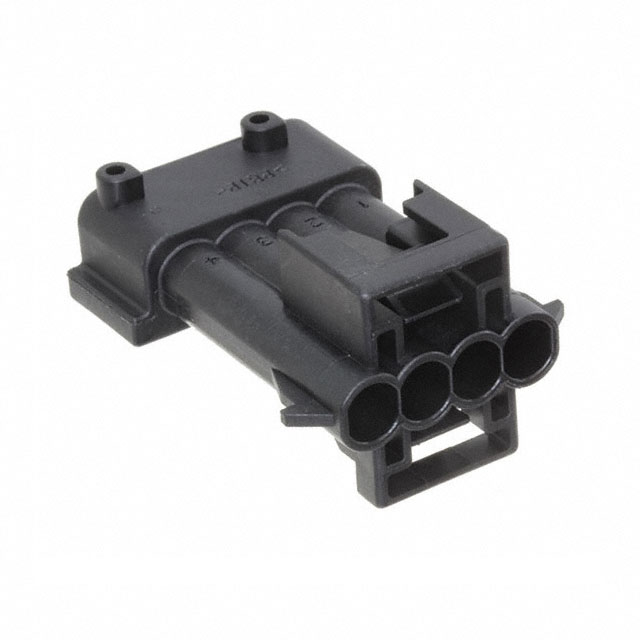

CONN PLUG HSG 4POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-965261-1
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 4POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-965261-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.12 | |
| 10 | $ 0.93 | |||
| 25 | $ 0.86 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.77 | |||
| 250 | $ 0.71 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.64 | |||
| 2500 | $ 0.60 | |||
965261 Series
CONN PLUG HSG 4POS 5.00MM
| Part | Fastening Type | Insulation Material | Number of Positions | Color | Contact Type | Connector Type | Pitch [x] | Pitch [x] | Contact Termination | Number of Rows | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-965261-1 | Locking Ramp | Polybutylene Terephthalate (PBT), Glass Filled | 4 | Black | Tab | Plug | 5 mm | 0.197 in | Crimp | 1 | Free Hanging (In-Line) | -40 °C | 120 °C | Contacts Not Included |
Description
General part information
965261 Series
4 Rectangular Connectors - Housings Plug Black 0.197" (5.00mm)
