PWR221T-50-1000F
ActiveBourns Inc.

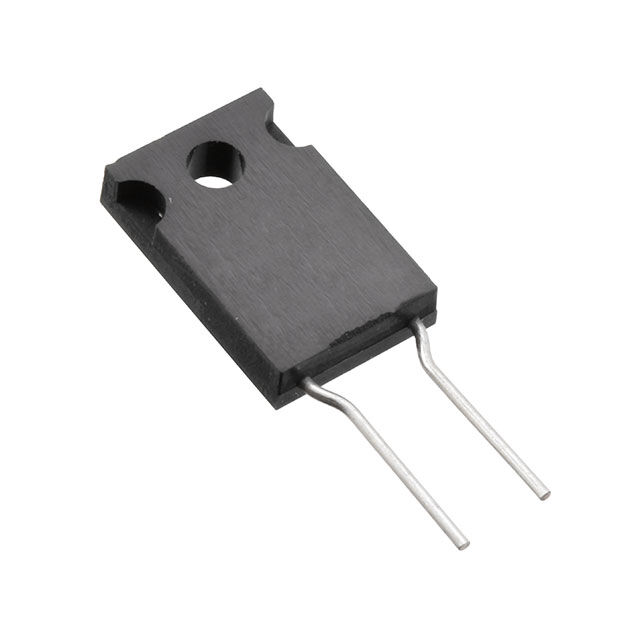

THROUGH HOLE RESISTOR, 100 OHM, PWR221T-50 SERIES, 50 W, ± 1%, TO-220, 250 V
PWR221T-50-1000F
ActiveBourns Inc.
THROUGH HOLE RESISTOR, 100 OHM, PWR221T-50 SERIES, 50 W, ± 1%, TO-220, 250 V
Description
General part information
PWR221T-50-1000F
100 Ohms ±1% 50W Through Hole Resistor TO-220-2 Full Pack Current Sense, Pulse Withstanding Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | PWR221T-50-1000F |
|---|---|
| Composition | Thick Film |
| Features | Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.76 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | TO-220-2 Full Pack |
| Package Name | TO-220 |
| Power (Watts) | 50 W |
| Resistance | 100 Ohms |
| Size / Dimension Length | 0.41 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
