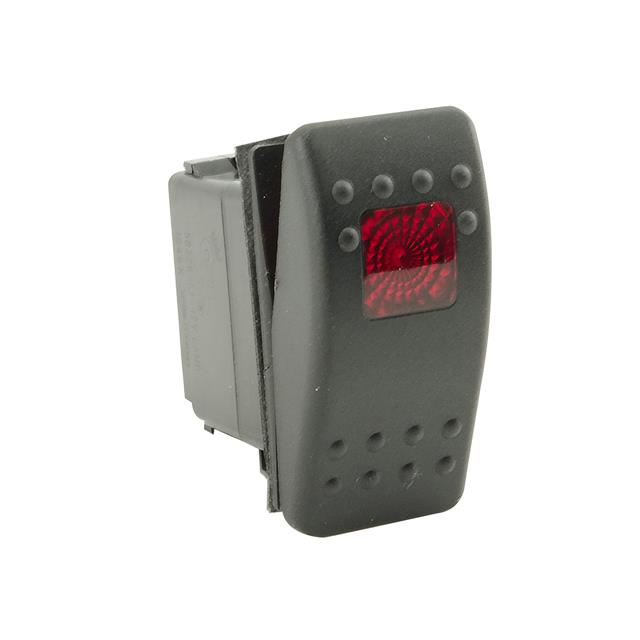

58326-01

Active

Cole Hersee

SWITCH ROCKER SPST 15A 24V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPST 15A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	58326-01

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	15 A
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP66
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	24 V

SWITCH ROCKER SPST 15A 24V

Part	Voltage Rating - DC	Mounting Type	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Color - Actuator/Cap	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Illumination Type, Color	Ingress Protection	Current Rating (Amps)	Switch Function	Termination Style
Cole Hersee 58326-01	24 V	Panel Mount, Snap-In	Convex (Reverse V) - Illuminated	No Marking	24 V	Black	21.08 mm	36.83 mm	SPST	LED, Red	IP66	15 A	On-Off	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 15.14

General part information

Rocker Switch SPST 15A (DC) Panel Mount, Snap-In
