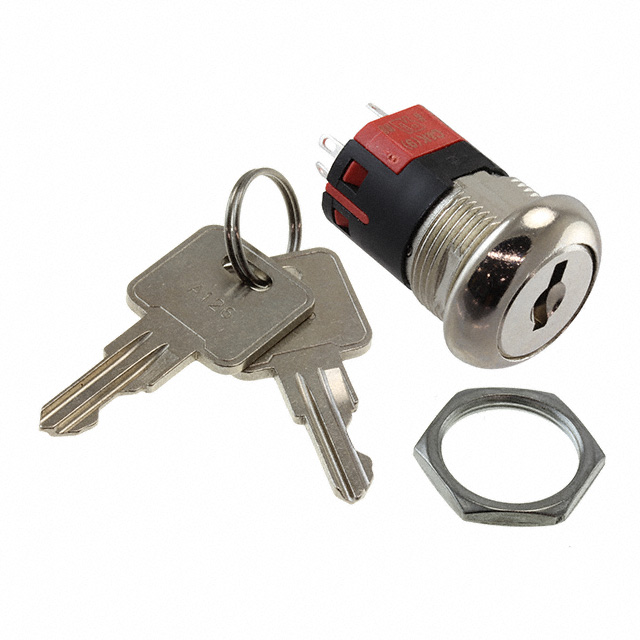

Y1011C2C203NQ
ActiveLITTELFUSE
SWITCH KEYLOCK 2POS SPDT 4A 125V
Deep-Dive with AI
Search across all available documentation for this part.
Y1011C2C203NQ
ActiveLITTELFUSE
SWITCH KEYLOCK 2POS SPDT 4A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Y1011C2C203NQ | Y1011C2C Series |
|---|---|---|
| Actuator Type | Flat Key | Flat Key |
| Angle of Throw | 90 ° | 90 ° |
| Circuit | SPDT | SPDT |
| Contact Finish | Silver | Silver, Gold |
| Contact Material | Copper | Copper |
| Contact Timing | Not Specified | Not Specified |
| Current Rating (Amps) | 4 A | 0.4 - 4 A |
| Depth Behind Flange | 28.83 mm | 28.83 mm |
| Depth Behind Flange | - | 23.14 mm |
| Electrical Life | 10000 Cycles | 10000 Cycles |
| Key Removable Positions | 2 | 2 |
| Number of Positions | 2 | 2 |
| Panel Cutout Dimensions [diameter] | 19.3 mm | 19.3 mm |
| Switch Function | On-On | On-On |
| Termination Style | Solder Lug | Solder Lug, Wire Leads |
| Voltage Rating - AC | 125 V | 20 - 125 V |
| Voltage Rating - DC | 28 V | 20 - 28 V |
Y1011C2C Series
4, 5 & 6 Tumbler Switchlock
| Part | Depth Behind Flange | Voltage Rating - AC | Voltage Rating - DC | Key Removable Positions | Angle of Throw | Switch Function | Electrical Life | Contact Timing | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Contact Finish | Contact Material | Number of Positions | Circuit | Actuator Type | Termination Style | Depth Behind Flange [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE Y1011C2C203NQ | 28.83 mm | 125 V | 28 V | 2 | 90 ° | On-On | 10000 Cycles | Not Specified | 4 A | 19.3 mm | Silver | Copper | 2 | SPDT | Flat Key | Solder Lug | |
LITTELFUSE Y1011C2C2WCNB | 20 V | 20 V | 2 | 90 ° | On-On | 10000 Cycles | Not Specified | 0.4 VA | 19.3 mm | Gold | Copper | 2 | SPDT | Flat Key | Wire Leads | 23.14 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.26 | |
| 10 | $ 9.19 | |||
| 36 | $ 8.89 | |||
Description
General part information
Y1011C2C Series
The Y series 4, 5 & 6 tumbler switchlock from C&K is an anti-static switch, exceeding 20 KV DC static resistance. Typically used in cash registers, point-of-sale terminals and computers, the high-performing Y series is also available in momentary models and with wire leads and/or harnesses.
