031-10495-NA

Active

AMPHENOL RF

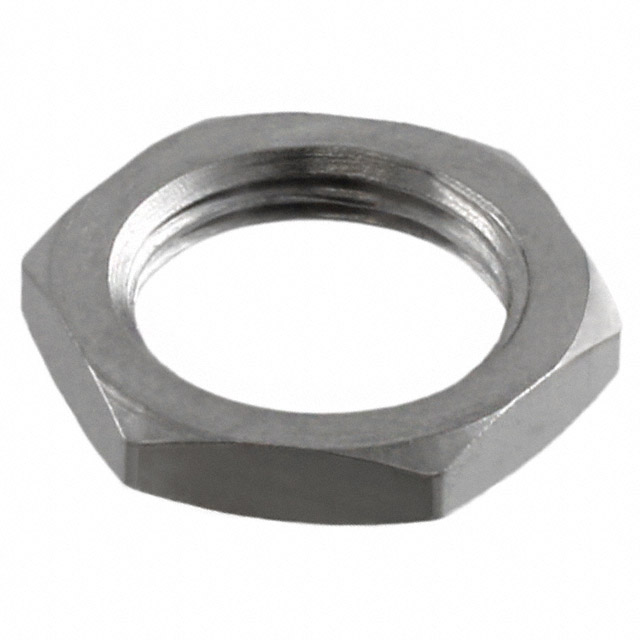

HEX NUT 12.57MM BRASS 3/8"-32

Search across all available documentation for this part.

Active

AMPHENOL RF

HEX NUT 12.57MM BRASS 3/8"-32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3/8"-32 Hex Nut 0.495" (12.57mm) Brass

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	031-10495-NA	031-10 Series

Body Finish	-	Nickel
Body Material	-	Brass
Center Contact Material	-	Phosphor Bronze
Center Contact Plating	-	Gold, Silver
Connector Style	-	BNC
Connector Type	-	Female Socket, Jack
Contact Termination	-	Solder Cup
Dielectric Material	-	Polyphenylene Oxide (PPO), Copolymer
Fastening Type	-	Bayonet Lock
Features	-	Isolated
Frequency - Max	-	4 GHz
Housing Color	-	White, Silver
Impedance	-	50 - 75 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	-	0.2 dB
Material	Brass	Brass
Mating Cycles	-	500
Mounting Feature	-	Bulkhead - Rear Side Nut, Flange
Number of Ports	-	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Plating	Nickel over Copper	Nickel over Copper
Shield Termination	-	Solder
Thickness	0.093 in	0.093 in
Thickness	2.36 mm	2.36 mm
Thread Size	3/8"-32	3/8"-32
Type	Hex	Hex
Voltage Rating	-	500 V
Width [y]	12.57 mm	12.57 mm
Width [y]	0.495 in	0.495 in

CONN BNC 0HZ TO 1GHZ 75OHM SOLDER CUP ST PANEL MOUNT F GOLD

Part	Connector Type	Frequency - Max [Max]	Shield Termination	Impedance	Insertion Loss	Mating Cycles	Connector Style	Center Contact Material	Includes	Fastening Type	Mounting Feature	Contact Termination	Number of Ports	Housing Color	Center Contact Plating	Body Finish	Body Material	Voltage Rating	Features	Dielectric Material	Material	Type	Thickness	Thickness	Thread Size	Plating	Width [y]	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 031-10-75RFXG2	Female Socket, Jack	4 GHz	Solder	75 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector, 1 Lockwasher, 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver, White	Gold	Nickel	Brass	500 V	Isolated
AMPHENOL RF 031-10-1002	Female Socket, Jack		Solder	50 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector, 1 Lockwasher, 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver, White	Gold	Nickel	Brass			Polyphenylene Oxide (PPO)
AMPHENOL RF 031-10495-NA																					Brass	Hex	0.093 in	2.36 mm	3/8"-32	Nickel over Copper	12.57 mm	0.495 in
AMPHENOL RF 031-105	Female Socket, Jack	4 GHz	Solder	50 Ohms	0.2 dB	500	BNC			Bayonet Lock	Flange	Solder Cup	1	Silver	Silver	Nickel	Brass	500 V		Copolymer									-65 ░C	165 °C
AMPHENOL RF 031-10-RFXG1	Female Socket, Jack	4 GHz	Solder	50 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector, 1 Lockwasher, 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver, White	Gold	Nickel	Brass	500 V	Isolated
