P703-12RED
ActiveE-Z-Hook
TEST LEAD PICO HOOK TO SOCKT 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P703-12RED
ActiveE-Z-Hook
TEST LEAD PICO HOOK TO SOCKT 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P703-12RED |
|---|---|
| 1st Connector | Pico Hook |
| 2nd Connector | Socket, Square |
| 2nd Connector | 0.64 mm |
| 2nd Connector | 0.025 in |
| Cable Length | 12 in |
| Cable Length | 304.8 mm |
| Configuration | Hook to Socket, Grabber |
| Contents | Red |
| Contents [custom] | 1 |
| Current Rating (Amps) | 1 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 105 °C |
| Temperature Range | 221 °F |
| Voltage - Rated | 600 VDC |
| Wire Gauge | 28 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.96 | |
| 100 | $ 7.45 | |||
| 250 | $ 6.97 | |||
| 500 | $ 6.47 | |||
Description
General part information
P703-12RED

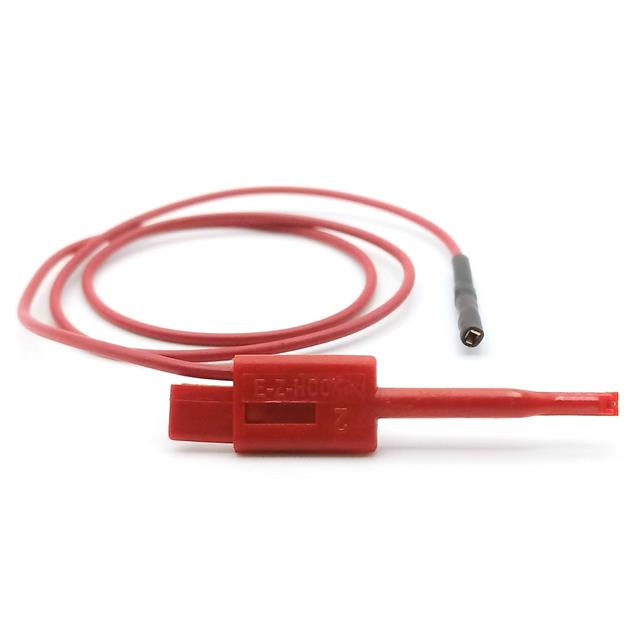

12.0" (304.80mm) Pico Hook To Socket, Square, 0.025" (0.64mm) Test Lead 600VDC 1 Lead, Red
