VLCF4018T-6R8NR94-2
ActiveTDK Corporation
FIXED IND 6.8UH 940MA 124MOHM SM
VLCF4018T-6R8NR94-2
ActiveTDK Corporation
FIXED IND 6.8UH 940MA 124MOHM SM
Description
General part information
VLCF4018T-6R8NR94-2

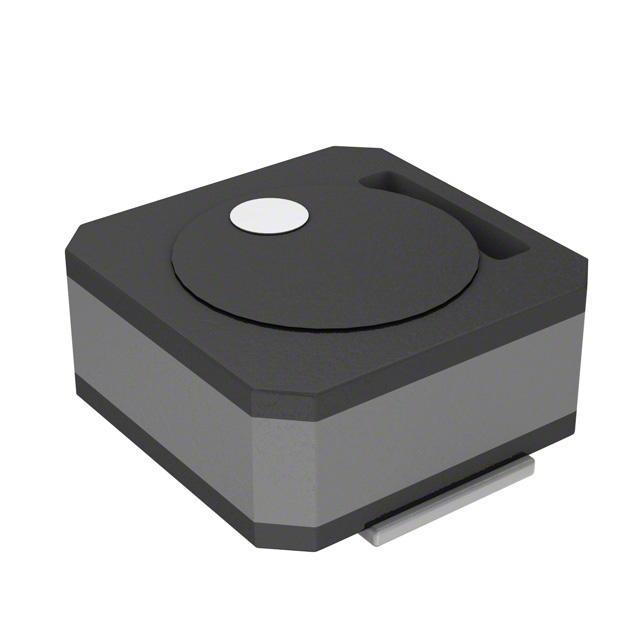

6.8 µH Shielded Drum Core, Wirewound Inductor 940 mA 124mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | VLCF4018T-6R8NR94-2 |
|---|---|
| Current - Saturation (Isat) | 0.94 mA |
| Current Rating | 940 mA |
| DC Resistance (DCR) (Max) | 124 mOhm |
| Height - Seated (Max) | 0.071 in |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
