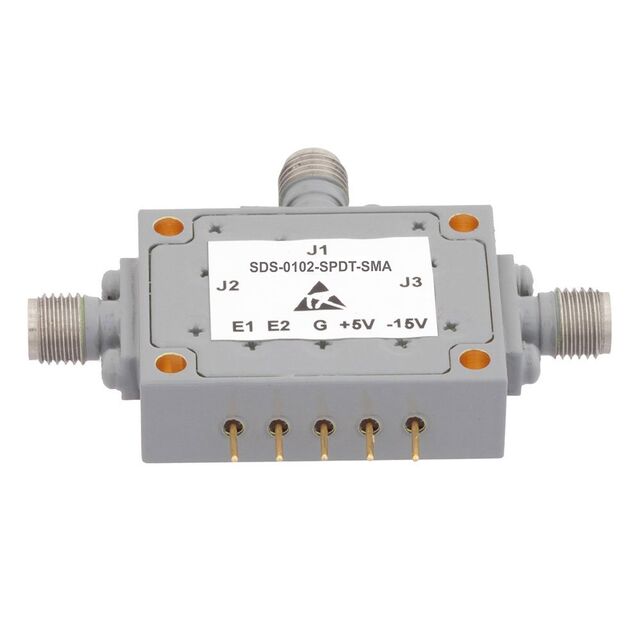

SDS-0102-SPDT-SMA
ActiveFairview Microwave
HIGH ISO SWITCH SMA 1GHZ-2GHZ S
SDS-0102-SPDT-SMA
ActiveFairview Microwave
HIGH ISO SWITCH SMA 1GHZ-2GHZ S
Description
General part information
SDS-0102-SPDT-SMA
RF Switch IC General Purpose SPDT
Technical Specifications
Parameters and characteristics for this part
| Specification | SDS-0102-SPDT-SMA |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 2 GHz |
| Frequency Range (Min) | 1 GHz |
| Insertion Loss | 1 dB |
| Isolation | 90 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -54 °C |
| RF Type | General Purpose |
| Test Frequency | 2 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 7 V |
| Voltage - Supply (Minimum) | -14 V |
