140-504-417-011
ActiveEDAC Inc.
2.0MM PITCH CONNECTOR WITH 4 SUR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 140-504-417-011 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height [custom] | 5.51 mm |
| Insulation Height [custom] | 0.217 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.58 | |
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 0.58 | ||
| 10 | $ 0.51 | |||
| 25 | $ 0.46 | |||
| 50 | $ 0.44 | |||
| 100 | $ 0.42 | |||
| 250 | $ 0.38 | |||
| Tape & Reel (TR) | 700 | $ 0.23 | ||
| 1400 | $ 0.20 | |||
Description
General part information

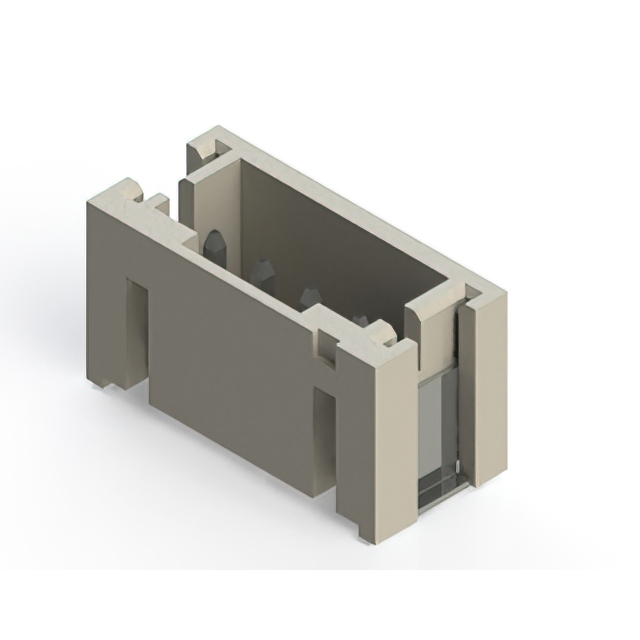

140-504-417-011
Connector Header Surface Mount 4 position 0.079" (2.00mm)
