W7282-2SG-P-300

Active

Conxall/Switchcraft

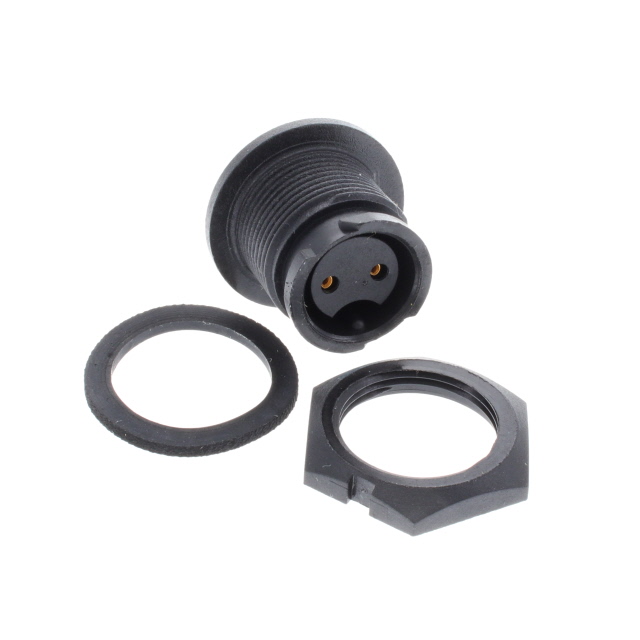

CONN RCPT FMALE 2POS SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 2POS SOLDER CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W7282-2SG-P-300	W7282-2 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant	UV Resistant
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	300 VAC	300 VAC

CONN RCPT FMALE 2POS SOLDER CUP

Part	Contact Finish - Mating	Color	Backshell Material, Plating	Number of Positions	Orientation	Mounting Feature	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Ingress Protection	Shielding	Primary Material	Voltage Rating	Fastening Type	Connector Type	Contact Material	Applications
Conxall/Switchcraft W7282-2SG-P-300	Gold	Black	Thermoplastic	2	Keyed	Bulkhead - Front Side Nut	Varies by Wire Gauge	UV Resistant	85 °C	-40 °C	Thermoplastic	IP66, IP67, IP68	Unshielded	Plastic	300 VAC	Bayonet Lock	Receptacle, Female Sockets	Copper Alloy	Automotive, Communication Systems, Instrumentation
Conxall/Switchcraft W7282-2SG-P-3ES	Gold	Black	Thermoplastic	2	Keyed	Bulkhead - Front Side Nut	Varies by Wire Gauge	UV Resistant	85 °C	-40 °C	Thermoplastic	IP66, IP67, IP68	Unshielded	Plastic	300 VAC	Bayonet Lock	Receptacle, Female Sockets	Copper Alloy	Automotive, Communication Systems, Instrumentation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
