214525 Series

1.25mm Pitch, Micro-Lock Plus Plug Crimp Housing, Single Row, 8 Circuits, UL 94V-0, Low-Halogen, Black

Part	Fastening Type	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Rows	Connector Type	Color	Contact Type	Contact Termination	Insulation Material	Pitch
Molex 2145252042	Locking Ramp	4	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Red	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252064	Locking Ramp	6	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Blue	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252062	Locking Ramp	6	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Red	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252081	Locking Ramp	8	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Black	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in

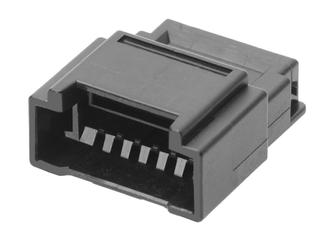

Molex 2145252061	Locking Ramp	6	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Black	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252051	Locking Ramp	5	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Black	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252040	Locking Ramp	4	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Natural	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252054	Locking Ramp	5	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Blue	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252030	Locking Ramp	3	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Natural	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in
Molex 2145252091	Locking Ramp	9	-40 °C	105 °C	Free Hanging (In-Line)	1	Plug	Black	Male Pin	Crimp	Nylon Polyamide (PA)	0.049 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
