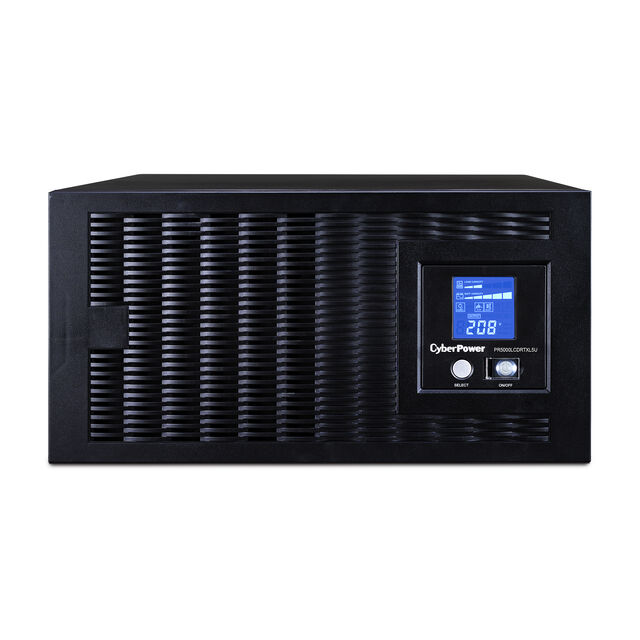

PR5000LCDRTXL5U
ActiveCyber Power Systems (USA) Inc.
5000VA/4000W, PURE SINE WAVE, 5U
PR5000LCDRTXL5U
ActiveCyber Power Systems (USA) Inc.
5000VA/4000W, PURE SINE WAVE, 5U
Description
General part information
PR5000LCDRTXL5U
5000VA/4000W, PURE SINE WAVE, 5U
Technical Specifications
Parameters and characteristics for this part
| Specification | PR5000LCDRTXL5U |
|---|---|
| AC Outlets (Count) | 5 count |
| Applications | General Purpose, Industrial Control |
| Backup Time - Max Load | 10 minutes |
| Cord Length | 10 ft |
| Form | Rackmount |
| Height | 8.75 in |
| Input Connector | NEMA L6-30P |
| Media Lines Protected | RJ11, RJ45 |
| Output Connector | NEMA L6-20R, NEMA L6-30R |
| Output Connector Quantity (NEMA L6-20R) | 2 |
| Output Connector Quantity (NEMA L6-30R) | 3 |
| Power - Rated (VA) | 5 kVA |
| Power - Rated (W) | 4500 W |
| Size / Dimension Length | 24.25 in |
| Size / Dimension Width | 17 in |
| Type | Line Interactive (Input Regulation) |
| Voltage - Output | 208 V |
