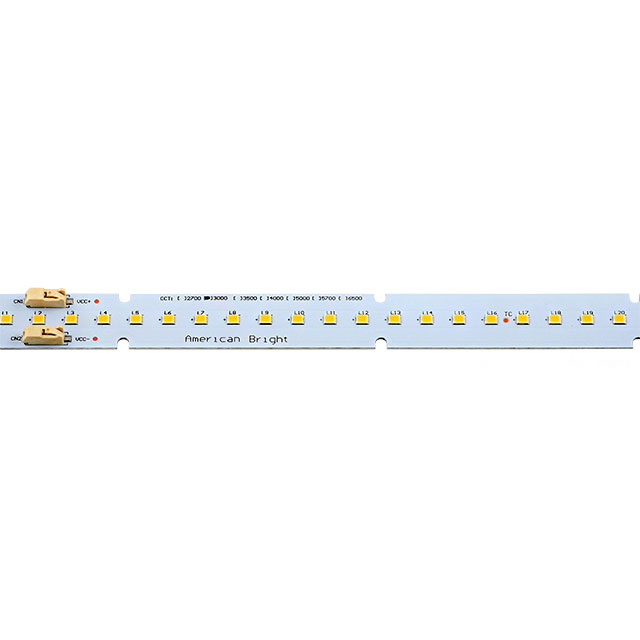

AB-L29D06W504N2

Active

American Bright Optoelectronics Corporation

LED ENG WH LNR STRIP 5000K

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LED ENG WH LNR STRIP 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	AB-L29D06W504N2

CCT (K)	5000 K
Color	Cool, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	600 mA
Current - Test	260 mA
Lens Type	Flat
Lumens/Watt @ Current - Test	169 lm/W
Luminous Flux @ Current/Temperature	1070 lm
Size / Dimension [x]	292 mm
Size / Dimension [y]	18 mm
Type	LED Engine
Voltage - Forward (Vf) (Typ)	24.4 V

LED ENG WH LNR STRIP 5000K

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Lumens/Watt @ Current - Test	Current - Test	Color	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Configuration	Lens Type	Type	Current - Max [Max]
American Bright Optoelectronics Corporation AB-L29D06W504N2	24.4 V	292 mm	18 mm	5000 K	169 lm/W	260 mA	Cool, White	80	1070 lm	Linear Light Strip	Flat	LED Engine	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 8.48

General part information

LED Lighting COBs Engines Modules LED Engine - White, Cool Linear Light Strip
