1593-1

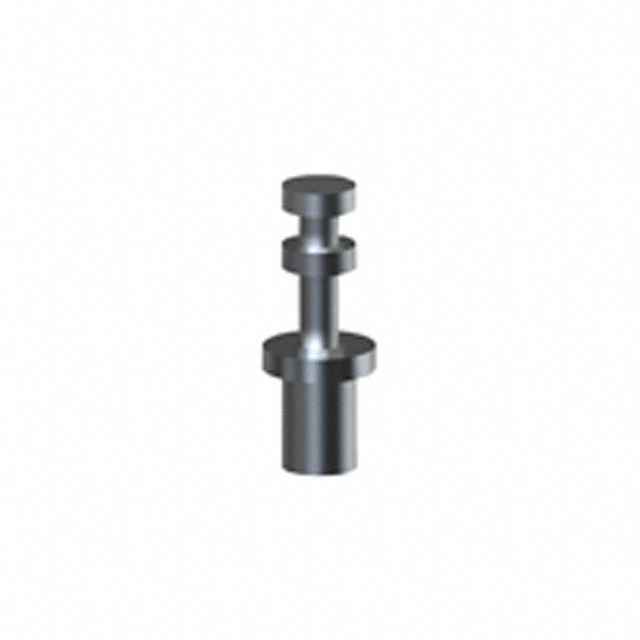

Terminal Turret Connector Single End 0.156" (3.96mm) Tin
Technical Specifications
Parameters and characteristics for this part
| Specification | 1593-1 |
|---|---|
| Board Thickness | 0.032 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Diameter - Turret Head | 0.062 in |
| Flange Diameter | 0.094 in |
| Insulation | Non-Insulated |
| Length - Above Board | 0.156 in |
| Length - Below Flange | 0.054 in |
| Length - Overall | 0.21 in |
| Mounting Hole Diameter | 0.067 in |
| Mounting Type | Through Hole |
| Number of Turrets | Double |
| Staking Side OD | 0.062 in |
| Terminal Type | Single End |
| Termination | Staking Flare |
