100645-3
ActiveTE Connectivity AMP Connectors

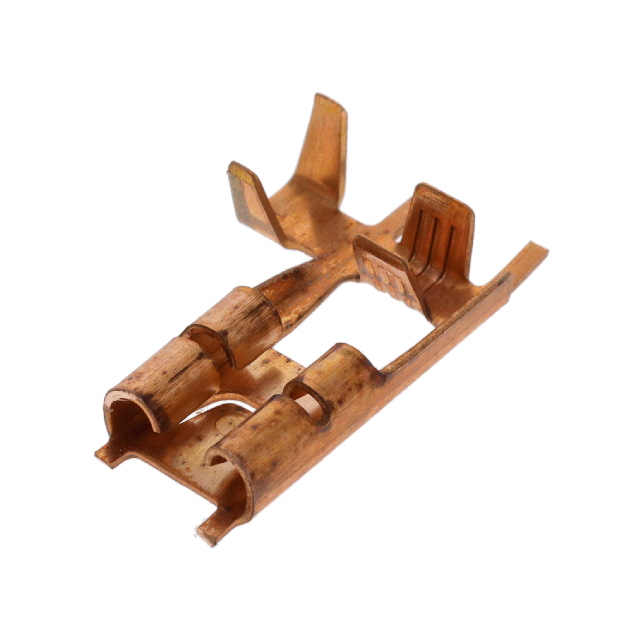

CONN QC RCPT 13-17AWG 0.250
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 100645-3 |
|---|---|
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] [diameter] | 3.81 mm |
| Insulation Diameter [Max] [diameter] | 0.15 " |
| Insulation Diameter [Min] [diameter] | 2.5 mm |
| Insulation Diameter [Min] [diameter] | 0.098 in |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Tab Length | 0.303 in |
| Tab Length | 7.7 mm |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Flag, Angled - 90° |
| Termination | Crimp |
| Wire Gauge [Max] | 17 AWG |
| Wire Gauge [Min] | 13 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.28 | |||
| Tape & Reel (TR) | 4000 | $ 0.25 | ||
| 8000 | $ 0.24 | |||
| 12000 | $ 0.23 | |||
| 20000 | $ 0.22 | |||
| 28000 | $ 0.22 | |||
| 40000 | $ 0.21 | |||
100645 Series
CONN QC RCPT 13-17AWG 0.250
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width | Tab Thickness | Tab Thickness | Mounting Type | Gender | Termination | Insulation | Tab Length | Tab Length | Terminal Type | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 100645-3 | 13 AWG | 17 AWG | 6.35 mm | 0.25 in | 0.032 in | 0.81 mm | Free Hanging (In-Line), Right Angle | Female | Crimp | Non-Insulated | 0.303 in | 7.7 mm | Angled - 90°, Flag | 3.81 mm | 2.5 mm | 0.098 in | 0.15 " | Phosphor Bronze |
Description
General part information
100645 Series
0.250" (6.35mm) Quick Connect Female 13-17 AWG Crimp Connector Non-Insulated
