A11CSP12VDC1.5D

Active

CIT Relay and Switch

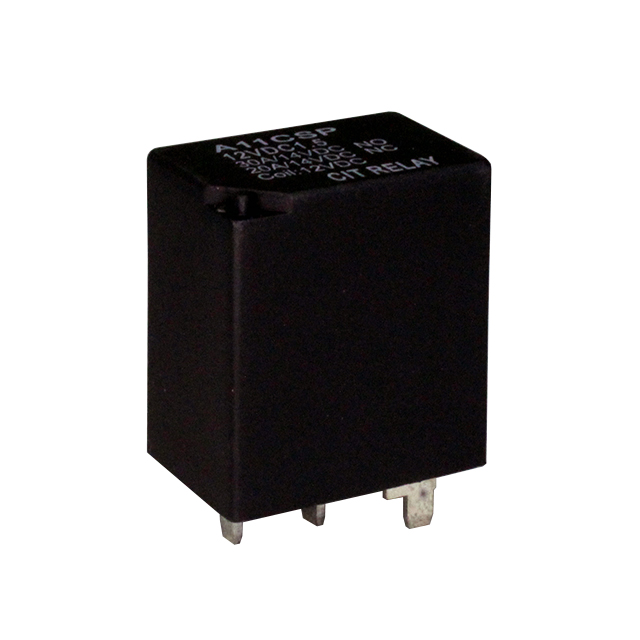

RELAY AUTOMOTIVE SPDT 30A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Relays Datasheet

A11CSP12VDC1.5D

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 30A 12V

Deep-Dive with AI

DocumentsA Series Relays Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A11CSP12VDC1.5D	A11CSP Series

Coil Current	125 mA	50 - 125 mA
Coil Power	1.5 W	1.2 - 1.5 W
Coil Resistance	96 Ohms	96 - 480 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	30 A
Features	Sealed - Fully, Diode	Sealed - Fully, Diode, Resistor
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	8.4 VDC	8.4 - 18 VDC
Must Release Voltage	1.2 VDC	1.2 - 2.4 VDC
Operate Time	10 ms	10 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	7 ms	7 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	PC Pin	PC Pin

A11CSP Series

RELAY AUTOMOTIVE SPDT 30A 24V

Part	Coil Power	Must Operate Voltage	Contact Form	Features	Mounting Type	Coil Current	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Must Release Voltage	Termination Style	Contact Rating (Current)	Switching Voltage	Operate Time	Contact Material	Release Time	Coil Resistance
CIT Relay and Switch A11CSP24VDC1.2D	1.2 W	18 VDC	SPDT (1 Form C)	Diode, Sealed - Fully	Through Hole	50 mA	Non Latching	85 °C	-40 °C	24 VDC	2.4 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	480 Ohms
CIT Relay and Switch A11CSP24VDC1.5	1.5 W	18 VDC	SPDT (1 Form C)	Sealed - Fully	Through Hole	62.5 mA	Non Latching	85 °C	-40 °C	24 VDC	2.4 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	384 Ohms
CIT Relay and Switch A11CSP24VDC1.2R	1.2 W	18 VDC	SPDT (1 Form C)	Resistor, Sealed - Fully	Through Hole	50 mA	Non Latching	85 °C	-40 °C	24 VDC	2.4 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	480 Ohms
CIT Relay and Switch A11CSP12VDC1.5R	1.5 W	8.4 VDC	SPDT (1 Form C)	Resistor, Sealed - Fully	Through Hole	125 mA	Non Latching	85 °C	-40 °C	12 VDC	1.2 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	96 Ohms
CIT Relay and Switch A11CSP12VDC1.2R	1.2 W	8.4 VDC	SPDT (1 Form C)	Resistor, Sealed - Fully	Through Hole	100 mA	Non Latching	85 °C	-40 °C	12 VDC	1.2 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	120 Ohms
CIT Relay and Switch A11CSP12VDC1.5D	1.5 W	8.4 VDC	SPDT (1 Form C)	Diode, Sealed - Fully	Through Hole	125 mA	Non Latching	85 °C	-40 °C	12 VDC	1.2 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	96 Ohms
CIT Relay and Switch A11CSP24VDC1.5R	1.5 W	18 VDC	SPDT (1 Form C)	Resistor, Sealed - Fully	Through Hole	62.5 mA	Non Latching	85 °C	-40 °C	24 VDC	2.4 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	384 Ohms
CIT Relay and Switch A11CSP12VDC1.5	1.5 W	8.4 VDC	SPDT (1 Form C)	Sealed - Fully	Through Hole	125 mA	Non Latching	85 °C	-40 °C	12 VDC	1.2 VDC	PC Pin	30 A	75 VDC	10 ms	Silver Tin Oxide (AgSnO)	7 ms	96 Ohms
