IS31FL3248-TQLS4-TR
ActiveLumissil Microsystems
48-CHANNEL, 16-BIT PWM LED DRIVE
IS31FL3248-TQLS4-TR
ActiveLumissil Microsystems
48-CHANNEL, 16-BIT PWM LED DRIVE
Description
General part information
IS31FL3248-TQLS4-TR
LED Driver IC 48 Output Linear Constant Current Dimming 33.6mA 64-eTQFP (7x7)
Technical Specifications
Parameters and characteristics for this part
| Specification | IS31FL3248-TQLS4-TR |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 33.6 mA |
| Internal Switch(s) | No |
| Mounting Type | Surface Mount |
| Number of Outputs | 48 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |

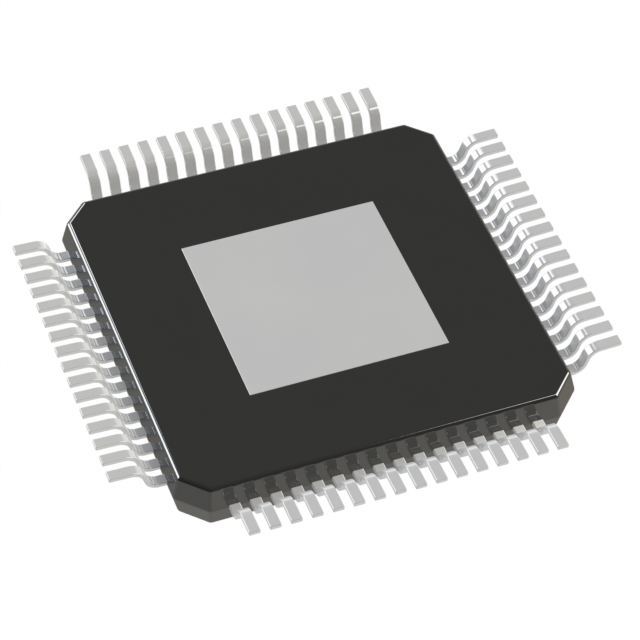

| Package / Case | 64-TQFP Exposed Pad |
| Package Length | 7 mm |
| Package Name | 64-eTQFP |
| Package Width | 7 mm |
| Topology | Constant Current |
| Type | Linear |
| Voltage - Output (Max) | 18 V |
| Voltage - Output (Min) | 4.5 V |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
