788159-2
ActiveTE Connectivity AMP Connectors

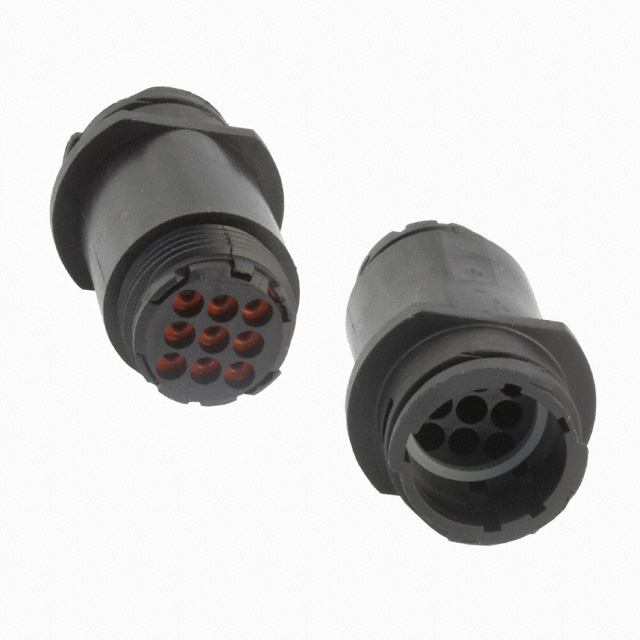

CONN RCPT HSNG MALE 9POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
788159-2
ActiveTE Connectivity AMP Connectors
CONN RCPT HSNG MALE 9POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 788159-2 | 788159 Series |
|---|---|---|
| Connector Type | Receptacle Housing | Receptacle Housing |
| Contact Shape | Circular | Circular |
| Contact Size | 16 | 16 |
| Contact Type | Crimp | Crimp |
| Housing Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 9 | 9 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | Keyed | Keyed |
| Shell Size - Insert | 13-9 | 13-9 |
| Shielding | Unshielded | Unshielded |
| Type | For Male Pins | For Male Pins |
788159 Series
CONN RCPT HSNG MALE 9POS INLINE
| Part | Type | Material Flammability Rating | Contact Type | Note | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Insert Material | Contact Size | Shell Size - Insert | Number of Positions | Shielding | Contact Shape | Mounting Type | Housing Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 788159-1 | For Male Pins | UL94 V-0 | Crimp | Contacts Not Included | IP67 - Dust Tight, Waterproof | 105 ░C | -55 °C | Keyed | Thermoplastic | 16 | 13-9 | 9 | Unshielded | Circular | Free Hanging (In-Line) | Black | Receptacle Housing |
TE Connectivity AMP Connectors 788159-2 | For Male Pins | UL94 V-0 | Crimp | Contacts Not Included | IP67 - Dust Tight, Waterproof | 105 ░C | -55 °C | Keyed | Thermoplastic | 16 | 13-9 | 9 | Unshielded | Circular | Free Hanging (In-Line) | Black | Receptacle Housing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.27 | |
| 10 | $ 14.31 | |||
| 25 | $ 13.28 | |||
| 50 | $ 12.55 | |||
| 100 | $ 11.87 | |||
| 250 | $ 11.02 | |||
| 500 | $ 10.42 | |||
Description
General part information
788159 Series
9 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
