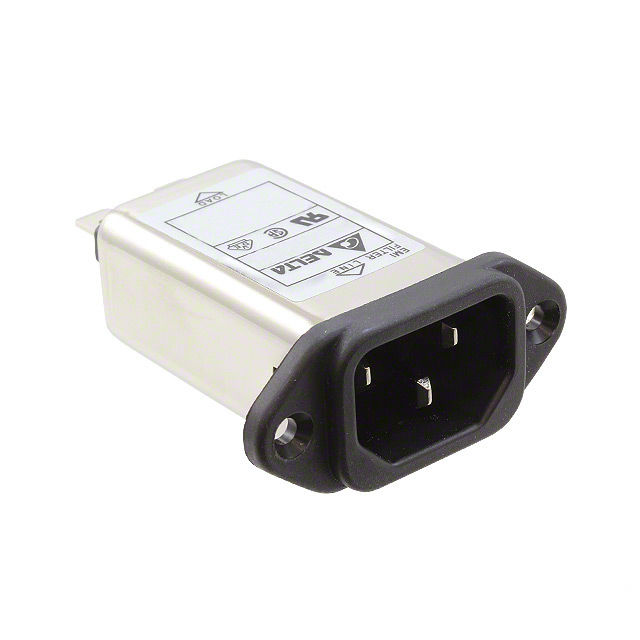

03KEEG3EAM

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03KEEG3EAM	03KEEG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A	3 A
Current Rating - Filter	3 A	3 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm	21.6 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

PWR ENT RCPT IEC320-C14 PANEL QC

Part	Filter Type	Current Rating - Filter	Current Rating - Appliance Inlet	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Approval Agency	Accomodates a Fuse	Connector Type	Mounting Type
Delta Electronics 03KEEG3SA	Filtered (EMI, RFI) - Commercial	3 A	3 A	IEC 320-C14	21.6 mm	28.45 mm	Quick Connect	115 VAC	250 VAC	CSA, UL, VDE		Male Blades, Receptacle	Flange, Panel Mount
Delta Electronics 03KEEG3EAM	Filtered (EMI, RFI) - Commercial, Medical	3 A	3 A	IEC 320-C14	21.6 mm	28.45 mm	Quick Connect	115 VAC	250 VAC	CSA, UL, VDE		Male Blades, Receptacle	Flange, Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	180	$ 6.96

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
