PN1L-M2AFB002E0Y
ActiveIDEC Corporation

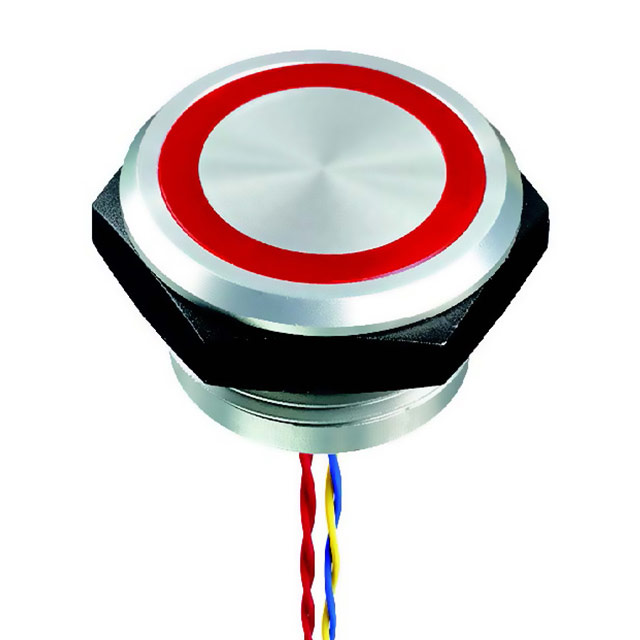

VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, PN1L SERIES, MOMENTARY, YELLOW, WIRE LEADED
Deep-Dive with AI
Search across all available documentation for this part.
PN1L-M2AFB002E0Y
ActiveIDEC Corporation
VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, PN1L SERIES, MOMENTARY, YELLOW, WIRE LEADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PN1L-M2AFB002E0Y | PN1L Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | SPST-NO | SPST-NO |
| Color - Actuator/Cap | Silver | Silver |
| Electrical Life | 50000000 Cycles | 50000000 Cycles |
| Illumination Type, Color | LED, Yellow | Red, LED, Green, White, Green/Red, Blue, Yellow |
| Illumination Voltage (Nominal) | 24 V | 12 - 24 VDC |
| Ingress Protection | IP68, IP69K | IP68, IP69K |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 75 ░C | 75 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm | 30.5 mm |
| Switch Function | Off-Mom | Off-Mom |
| Termination Style | Wire Leads | Wire Leads |
| Type | Piezo | Piezo |
| Voltage Rating - AC | 24 V | 24 V |
| Voltage Rating - DC | 24 V | 24 V |
PN1L Series
VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, PN1L SERIES, MOMENTARY, RED, WIRE LEADED
| Part | Ingress Protection | Type | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Termination Style | Illumination Voltage (Nominal) | Voltage Rating - AC | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Marking | Mounting Type | Switch Function | Actuator Type | Circuit | Electrical Life | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEC Corporation PN1L-M4AFB002D0S | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 12 VDC | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | LED, Red |
IDEC Corporation PN1L-M4AFB002D0G | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 12 VDC | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | Green, LED |
IDEC Corporation PN1L-M2AFB002D0W | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 12 VDC | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | LED, White |
IDEC Corporation PN1L-M2AFB002E2A | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 24 V | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | Green/Red, LED |
IDEC Corporation PN1L-M4AFB002E0W | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 24 V | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | LED, White |
IDEC Corporation PN1L-M2AFB002E0B | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 24 V | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | Blue, LED |
IDEC Corporation PN1L-M4AFB002D0Y | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 12 VDC | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | LED, Yellow |
IDEC Corporation PN1L-M2AFB002D2A | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 12 VDC | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | Green/Red, LED |
IDEC Corporation PN1L-M2AFB002E0Y | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 24 V | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | LED, Yellow |
IDEC Corporation PN1L-M4AFB002E0B | IP68, IP69K | Piezo | 30.5 mm | 24 V | Wire Leads | 24 V | 24 V | Silver | -40 °C | 75 ░C | No Marking | Panel Mount, Front | Off-Mom | Button, Flush, Round | SPST-NO | 50000000 Cycles | Blue, LED |
