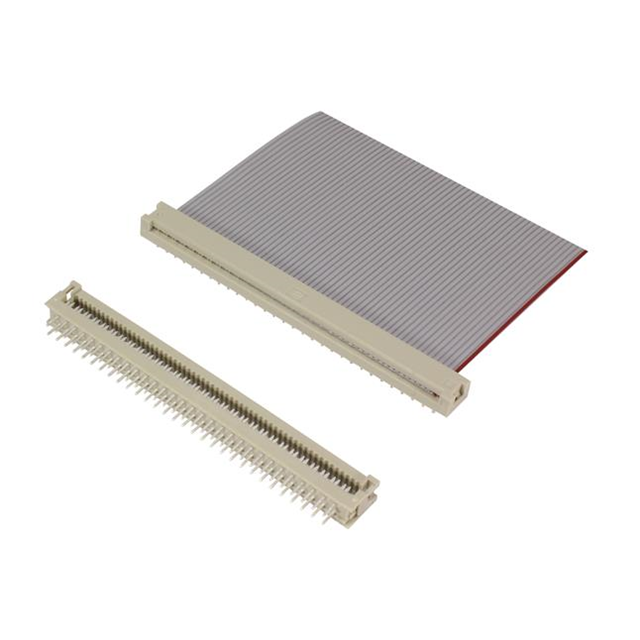

Specification	09181649422

Board-Side Pitch	0.1 in
Cable Termination	IDC
Connector Type	Ribbon Cable, DIP Header
Features	Feed Through
Mounting Type	Kinked Pin, Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	0.1 in

sek-low-profile Series

...

Part	Insulation Material	Number of Positions	Contact Material	Row Spacing - Mating	Style	Fastening Type	Termination	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Color	Contact Type	Contact Length - Post	Contact Finish - Mating	Contact Length - Mating	Insulation Height	Material Flammability Rating	Connector Type	Shrouding	Number of Rows	Contact Shape	Pitch - Mating	Mounting Type	Features	Contact Finish Thickness - Mating	Contact Finish - Post	Cable Termination	Board-Side Pitch	Row Spacing
HARTING 09185166321	Glass Filled Polybutylene Terephthalate (PBT)	16	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Gray	Male Pin	0.177 in	Gold	0.24 in	0.366 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Right Angle Through Hole	Keying Slot
HARTING 09185065321	Glass Filled Polybutylene Terephthalate (PBT)	6	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Gray	Male Pin	0.177 in	Gold	0.24 in	0.366 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Right Angle Through Hole	Keying Slot	30 µin	Tin
HARTING 09185505322	Glass Filled Polybutylene Terephthalate (PBT)	50	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Gray	Male Pin	0.177 in	Gold	0.24 in	0.35 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Through Hole	Keying Slot	30 µin	Tin
HARTING 09181209422		20																DIP Header Ribbon Cable		2			Kinked Pin Through Hole	Feed Through			IDC	0.1 in	0.1 in
HARTING 09181509622		50						All										DIP Header Ribbon Cable		2			Through Hole	Feed Through			IDC	0.1 in	0.1 in
HARTING 09185306324	Glass Filled Polybutylene Terephthalate (PBT)	30	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Gray	Male Pin	0.114 in	Gold	0.24 in	0.35 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Through Hole	Keying Slot		Tin
HARTING 09185305324	Glass Filled Polybutylene Terephthalate (PBT)	30	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Gray	Male Pin	0.114 in	Gold	0.24 in	0.35 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Through Hole	Keying Slot	30 µin	Tin
HARTING 09185307324	Glass Filled Polybutylene Terephthalate (PBT)	30	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Gray	Male Pin	0.114 in	Gold	0.242 in	0.35 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Through Hole	Keying Slot		Tin
HARTING 09195406324	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT)	40	Copper Alloy	0.1 in	Board Cable/Wire	Latch Holder	Solder	All	125 °C	-55 °C	Beige	Male Pin	0.114 in		0.24 in	0.35 in	UL94 V-0	Header	Shrouded - 4 Wall	2	Square	0.1 in	Through Hole	Keying Slot		Tin
HARTING 09185206324001		20		0.1 in	Board Cable/Wire	Latch Holder	Solder	All			Black	Male Pin	0.114 in		0.24 in	0.35 in		Header	Shrouded - 4 Wall	2	Square	0.1 in	Through Hole	Keying Slot

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

09181649422 | Datasheet
