9770 001500

Active

Belden Inc.

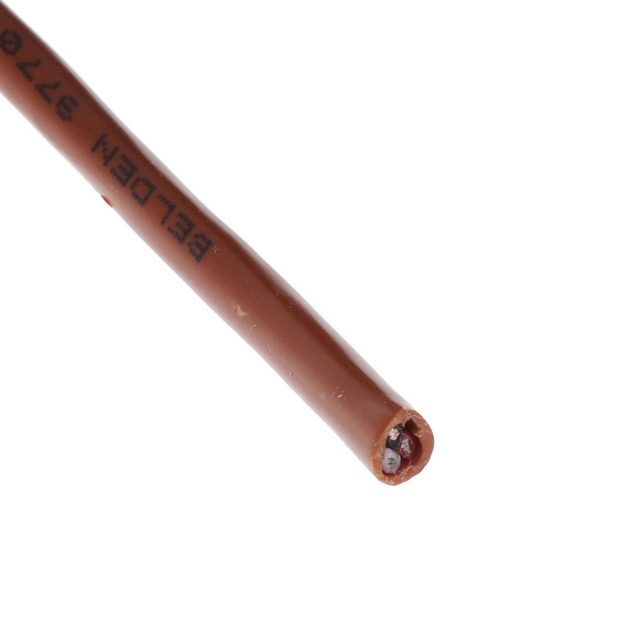

CABLE 3CON 22AWG BROWN SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 22AWG BROWN SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	9770 001500

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.145 in
Jacket (Insulation) Diameter [diameter]	3.68 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Brown
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Length [x]	Length [x]	Jacket Color	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Wire Gauge	Features	Conductor Material	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Material
Belden Inc. 9770 001500	Aluminum	7	30 AWG	Polypropylene (PP)	0.145 in	3.68 mm	3	500 '	152.4 m	Brown	Audio Control Instrumentation	-20 C	90 °C	100 %	22 AWG	Drain Wire	Copper Tinned	Foil	0.02 in	0.508 mm	Multi-Conductor	Poly-Vinyl Chloride (PVC)
