AEV150-MA

Active

Altran Magnetics, LLC

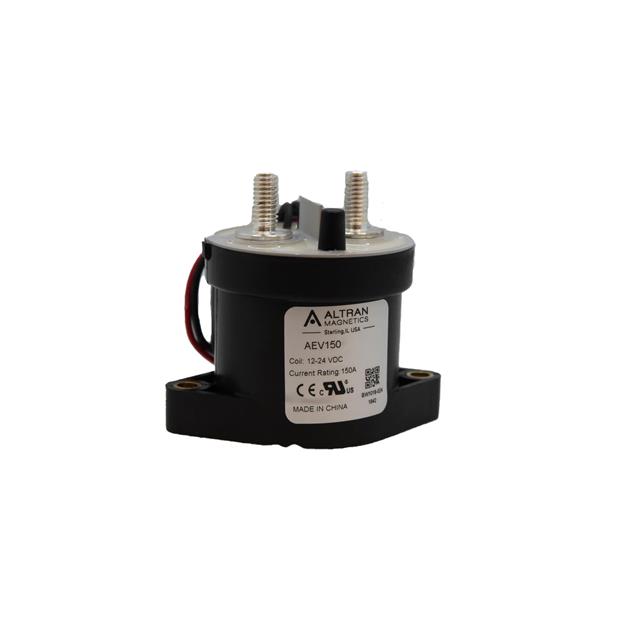

DC CONTACTOR 150A,12-24VDC - AUX

Search across all available documentation for this part.

Active

Altran Magnetics, LLC

DC CONTACTOR 150A,12-24VDC - AUX

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AEV150-MA	AEV150 Series

Coil Current	130 mA	130 mA
Coil Voltage [Max]	24 VDC	24 VDC
Coil Voltage [Min]	12 VDC	12 VDC
Contact Form	SPST-NO (DM) (1 Form X)	SPST-NO (DM) (1 Form X)
Contact Rating (Current)	150 A	150 A
Features	Economizer, Sealed - Hermetically, Auxiliary Contacts	Economizer, Sealed - Hermetically, Auxiliary Contacts
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	9 VDC	9 VDC
Must Release Voltage	6 VDC	6 VDC
Operate Time	25 ms	25 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	12 ms	12 ms
Switching Voltage	900 VDC	900 VDC
Termination Style	Wire Leads, Stud	Wire Leads, Stud

DC CONTACTOR 150A,12-24VDC - AUX

Part	Release Time	Operate Time	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage [Min]	Coil Voltage [Max]	Contact Rating (Current)	Features	Must Operate Voltage	Contact Form	Coil Current	Switching Voltage	Termination Style	Mounting Type
Altran Magnetics, LLC AEV150-MA	12 ms	25 ms	6 VDC	85 °C	-40 °C	12 VDC	24 VDC	150 A	Auxiliary Contacts, Economizer, Sealed - Hermetically	9 VDC	SPST-NO (DM) (1 Form X)	130 mA	900 VDC	Stud, Wire Leads	Chassis Mount
Altran Magnetics, LLC AEV150-M	12 ms	25 ms	6 VDC	85 °C	-40 °C	12 VDC	24 VDC	150 A	Economizer, Sealed - Hermetically	9 VDC	SPST-NO (DM) (1 Form X)	130 mA	900 VDC	Stud, Wire Leads	Chassis Mount
