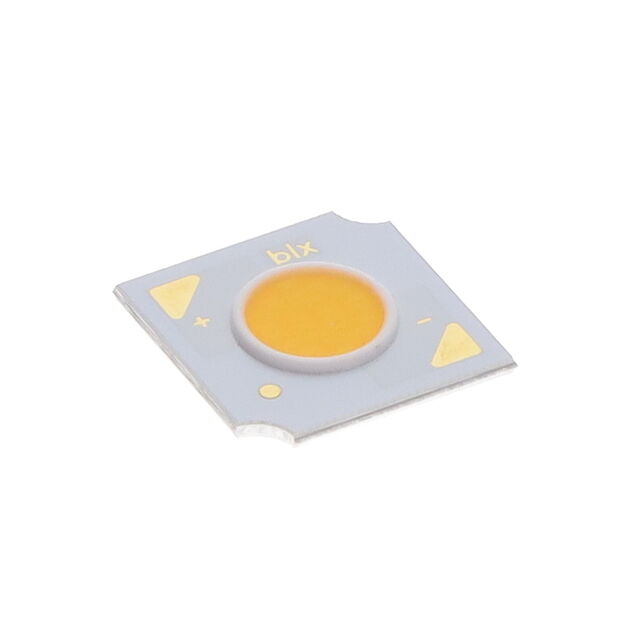

BXRH-30G1000-B-83
ActiveBRIDGELUX
LED COB V6 HD WARM WHT SQ 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BXRH-30G1000-B-83
ActiveBRIDGELUX
LED COB V6 HD WARM WHT SQ 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BXRH-30G1000-B-83 | BXRH-30 Series |
|---|---|---|
| CCT (K) | 3000 K | 3000 K |
| Color | White, Warm | White, Warm |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 90 | 80 - 98 |
| Current - Max [Max] | 600 mA | 1.05 - 960 mA |
| Current - Test | 350 mA | 1 - 750 mA |
| Height [z] | 1.63 mm | 1.63 - 1.7 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 6.6 mm | 3.8 - 12.6 mm |
| Lumens/Watt @ Current - Test | 114 lm/W | 79 - 142 lm/W |
| Luminous Flux @ Current/Temperature | 1459 lm | 291 - 5380 lm |
| Size / Dimension | - | 12.5 - 19 mm |
| Size / Dimension | - | 12.5 - 19 mm |
| Temperature - Test | - | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 112 - 120 ° |
| Voltage - Forward (Vf) (Typ) | 36.6 V | 17.6 - 36.6 V |
BXRH-30 Series
LED COB V6 HD WARM WHT SQ 3000K
| Part | Lens Type | CCT (K) | Type | CRI (Color Rendering Index) | Current - Max [Max] | Viewing Angle | Light Emitting Surface (LES) [diameter] | Voltage - Forward (Vf) (Typ) | Color | Luminous Flux @ Current/Temperature | Height [z] | Current - Test | Configuration | Lumens/Watt @ Current - Test | Size / Dimension [x] | Size / Dimension [y] | Temperature - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BRIDGELUX BXRH-30G1000-B-83 | Flat | 3000 K | Chip On Board (COB) | 90 | 600 mA | 120 ° | 6.6 mm | 36.6 V | Warm, White | 1459 lm | 1.63 mm | 350 mA | Square | 114 lm/W | |||
BRIDGELUX BXRH-30G10H0-G-83 | Flat | 3000 K | Chip On Board (COB) | 90 | 1.2 A | 120 ° | 6.6 mm | 18.3 V | Warm, White | 1522 lm | 1.63 mm | Square | 119 lm/W | ||||
BRIDGELUX BXRH-30G0600-B-83 | Flat | 3000 K | Chip On Board (COB) | 90 | 600 mA | 120 ° | 4.8 mm | 18.3 V | Warm, White | 705 lm | 1.63 mm | 350 mA | Square | 110 lm/W | 12.5 mm | 12.5 mm | |
BRIDGELUX BXRH-30G300C-D-83 | Flat | 3000 K | Chip On Board (COB) | 90 | 1.2 A | 120 ° | 8.8 mm | 36.6 V | Warm, White | 2891 lm | 1.63 mm | Square | 113 lm/W | 19 mm | 19 mm | ||
BRIDGELUX BXRH-30E0300-B-83 | Flat | 3000 K | Chip On Board (COB) | 80 | 360 mA | 120 ° | 3.8 mm | 17.6 V | Warm, White | 396 lm | 1.63 mm | Square | 141 lm/W | 12.5 mm | 12.5 mm | ||
BRIDGELUX BXRH-30S1001-G-72 | Flat | 3000 K | Chip On Board (COB) | 98 | 960 mA | 120 ° | 6.6 mm | 18.2 V | Warm, White | 1223 lm | 1.63 mm | Square | 96 lm/W | ||||
BRIDGELUX BXRH-30H0600-A-73 | Flat | 3000 K | Chip On Board (COB) | 97 | 240 mA | 120 ° | 5.2 mm | 35.4 V | Warm, White | 498 lm | 1.63 mm | 175 mA | Square | 80 lm/W | 12.5 mm | 12.5 mm | 85 °C |
BRIDGELUX BXRH-30E1000-C-23 | Flat | 3000 K | Chip On Board (COB) | 80 | 1.05 A | 112 ° | 6.6 mm | 18.3 V | Warm, White | 1373 lm | 1.7 mm | 750 mA | Square | 100 lm/W | 13.35 mm | 13.35 mm | |
BRIDGELUX BXRH-30G1000-G-83 | Flat | 3000 K | Chip On Board (COB) | 90 | 1.2 A | 120 ° | 6.6 mm | 18.3 V | Warm, White | 1459 lm | 1.63 mm | Square | 114 lm/W | ||||
BRIDGELUX BXRH-30E3000-D-83 | Flat | 3000 K | Chip On Board (COB) | 80 | 1.2 A | 120 ° | 8.8 mm | 36.6 V | Warm, White | 3630 lm | 1.63 mm | Square | 142 lm/W | 19 mm | 19 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.41 | |
| 10 | $ 2.28 | |||
| 100 | $ 1.75 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.36 | |||
| 2000 | $ 1.29 | |||
| 5000 | $ 1.26 | |||
Description
General part information
BXRH-30 Series
LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 V6 HD LED Array White, Warm Square
