730-2TR-24VDC

Active

Kacon

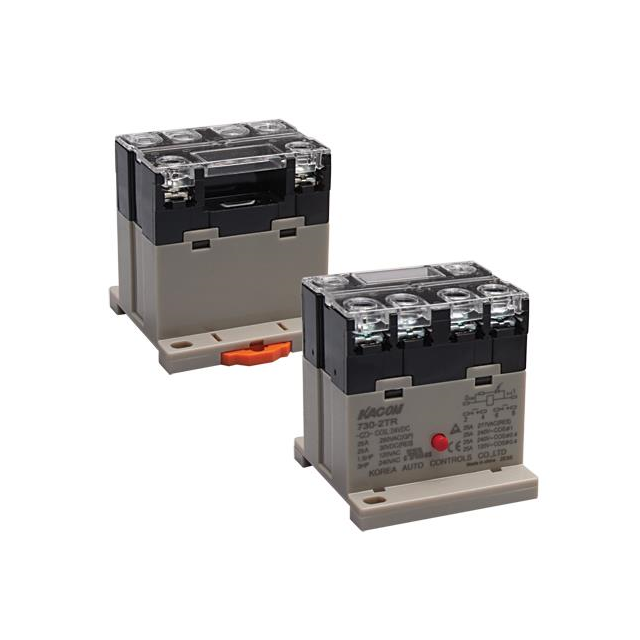

RELAY GEN PURPOSE DPST 25A 24V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE DPST 25A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE DPST 25A 110V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Release Time	Mounting Type	Contact Material	Contact Rating (Current)	Features	Relay Type	Coil Voltage	Termination Style	Contact Form	Operate Time	Coil Current
Kacon 730-2TR-110VAC	-10 °C	60 °C	30 VDC, 277 VAC	30 ms	DIN Rail	Silver Alloy	25 A	Test Button	General Purpose	110 VAC/DC	Screw Terminal	DPST-NO (2 Form A)	30 ms	24.5 mA
Kacon 730-2TR-24VDC	-10 °C	60 °C	30 VDC, 277 VAC	30 ms	DIN Rail	Silver Alloy	25 A	Test Button	General Purpose	24 VDC	Screw Terminal	DPST-NO (2 Form A)	30 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.24

General part information

General Purpose Relay DPST-NO (2 Form A) 24VDC Coil DIN Rail

Technical documentation and resources
