0998250.UX-2M8
ObsoleteLITTELFUSE

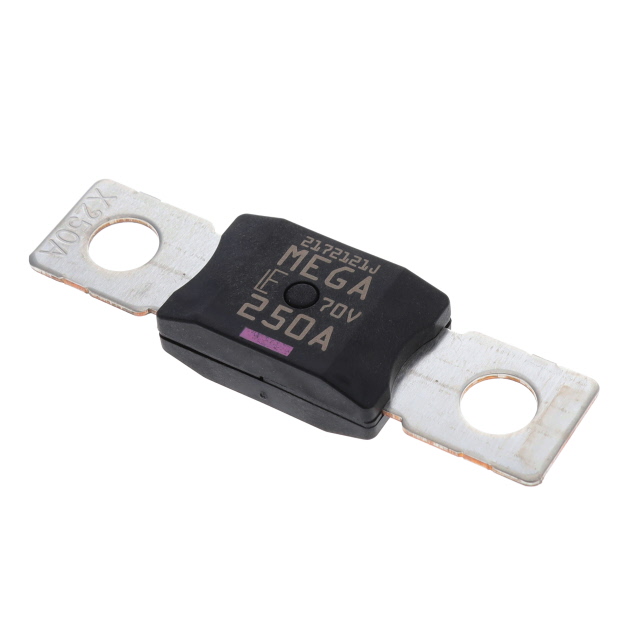

FUSE - MEGA 70V (SF51) 2-M8 HOLES 250A/ BULK
0998250.UX-2M8
ObsoleteLITTELFUSE
FUSE - MEGA 70V (SF51) 2-M8 HOLES 250A/ BULK
Description
General part information
0998250.UX-2M8
250 A AC 70 V DC Fuse Automotive Bolt Mount Auto Link
Technical Specifications
Parameters and characteristics for this part
| Specification | 0998250.UX-2M8 |
|---|---|
| Breaking Capacity | 2.5 kA |
| Current Rating | 250 A |
| Fuse Type | Automotive |
| Melting I²t | 240000 |
| Mounting Type | Bolt Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Auto Link |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 1.149 in |
| Size / Dimension Width | 0.75 in |
| Voltage Rating - DC | 70 V |
