KMF1.1191.11

Active

SCHURTER Inc.

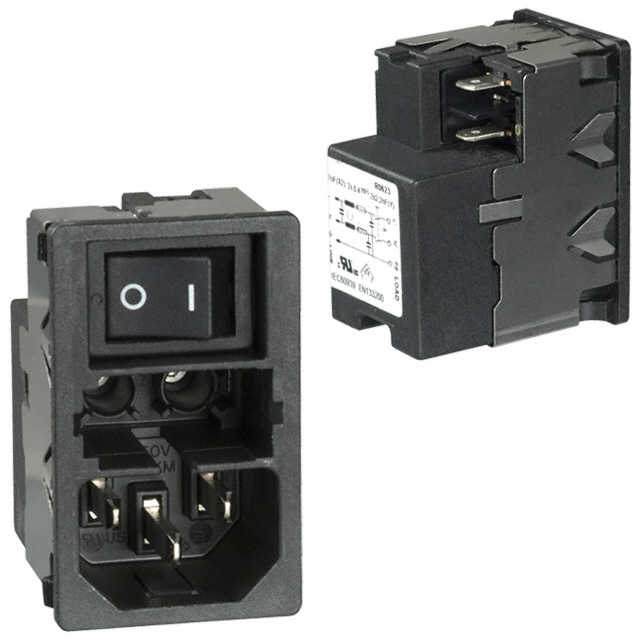

KMF, MOUNTING: FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14, PR

Search across all available documentation for this part.

Active

SCHURTER Inc.

KMF, MOUNTING: FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14, PR

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1191.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

KMF, MOUNTING: FRONT SIDE, FILTER: STANDARD VERSION, FUSE HOLDER: 2-POLE, FRONT SIDE, 10 A, 2-POLE, APPLIANCE INLET: IEC C14, PR

Part	Approval Agency	Filter Type	Connector Type	Accomodates a Fuse	Current Rating - Filter	Connector Style	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Termination	Termination	Fuse Holder, Drawer	Ingress Protection	Switch Features	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Material Flammability Rating
SCHURTER Inc. KMF1.1191.11	CCC, cULus, ENEC	Filtered (EMI, RFI) - Commercial	Receptacle, Male Blades - Module		10 A	IEC 320-C14	2.5 mm	1 mm	0.098 in	0.039 in	250 VAC	10 A	0.189 ", 4.8 mm	Quick Connect	Drawer Sold Separate	IP40	Switch On-Off	Panel Mount, Snap-In	47.8 mm	28.8 mm	Shielded	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
