PE3293-24
ActivePasternack

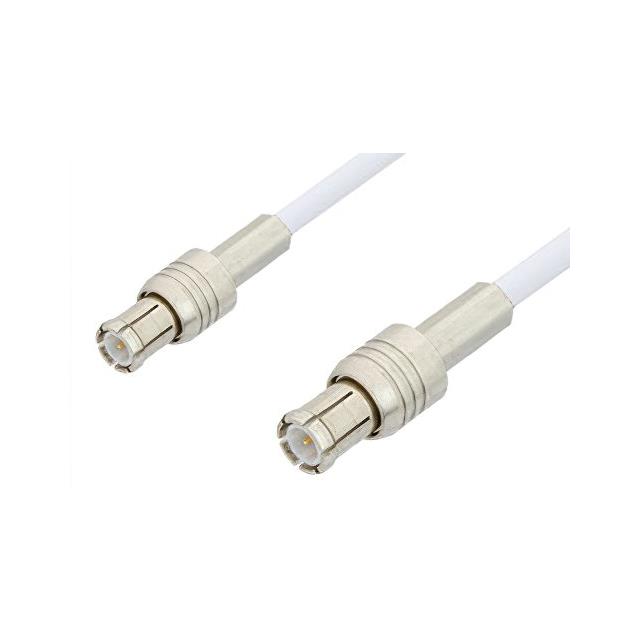

MCX PLUG TO MCX PLUG CABLE 24 IN
PE3293-24
ActivePasternack
MCX PLUG TO MCX PLUG CABLE 24 IN
Description
General part information
PE3293-24
Cable Assembly Coaxial MCX to MCX RG-196 24.00" (609.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE3293-24 |
|---|---|
| 1st Connector | MCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 196 |
| Color | White |
| Connector Impedance | 50 Ohms |
| Length | 24 in |
| Overall Impedance | 50 Ohms |
| Style | MCX |
